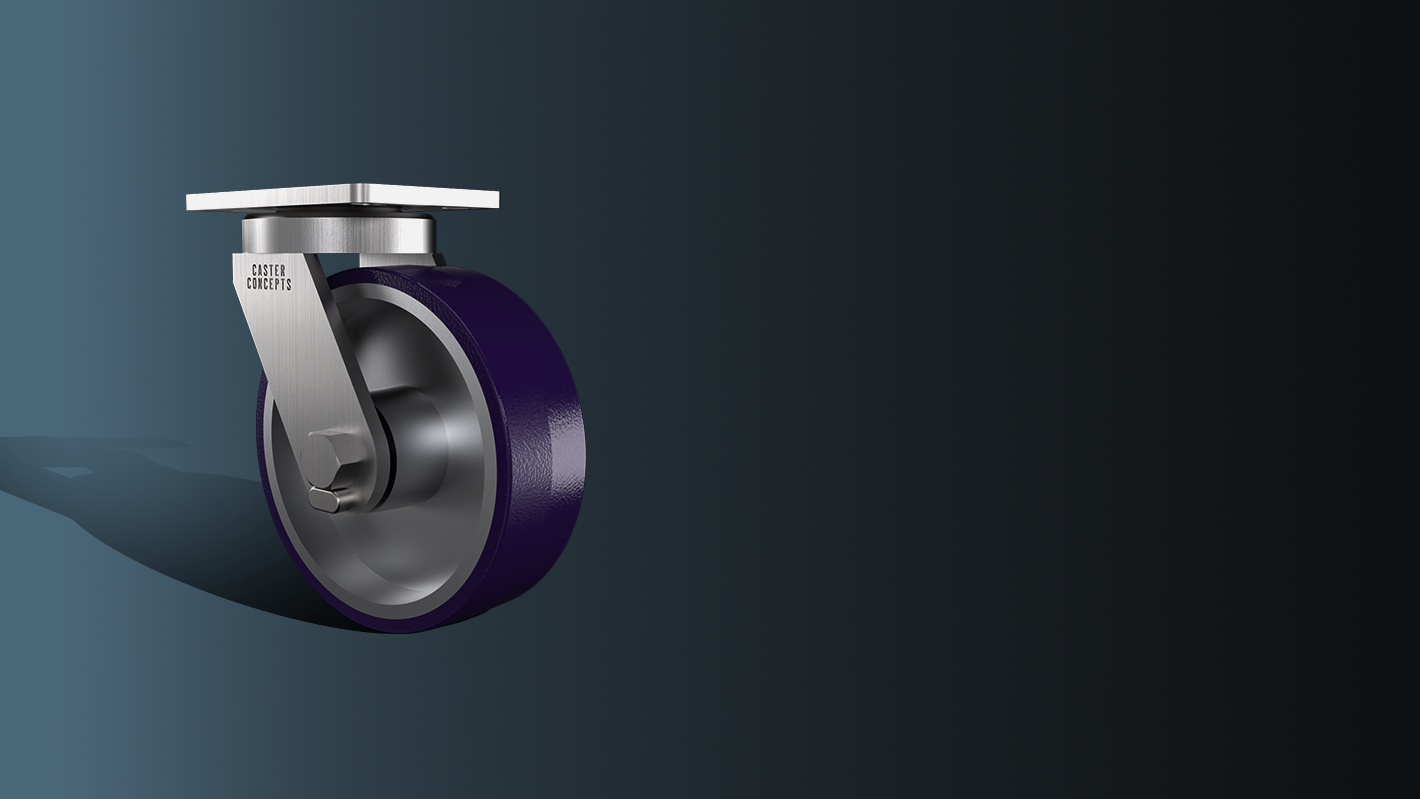

71-SERIES
Suited for medium duty towing applications where shock loads are present. In addition, they may be used for dough troughs, high capacity die tables, machinery dollies, corrugated steel box trucks, heavy portable storage racks, mobile military equipment, aircraft maintenance stands, and aircraft crew stairs.
FEATURES
Available in Rigid or Swivel: The high alloy steel swivel section features a precision-machined and through-hardened 3-1/4” diameter raceway.
Legs: 5/16” x 3” legs are formed and continuously welded inside and outside to the yoke base.
Kingpin: Kingpinless style design.
Axle: 3/4” bolt and locking nut.
Lubrication: Pre-lubricated before shipping.
Wheels: 4” to 12” wheels are available.

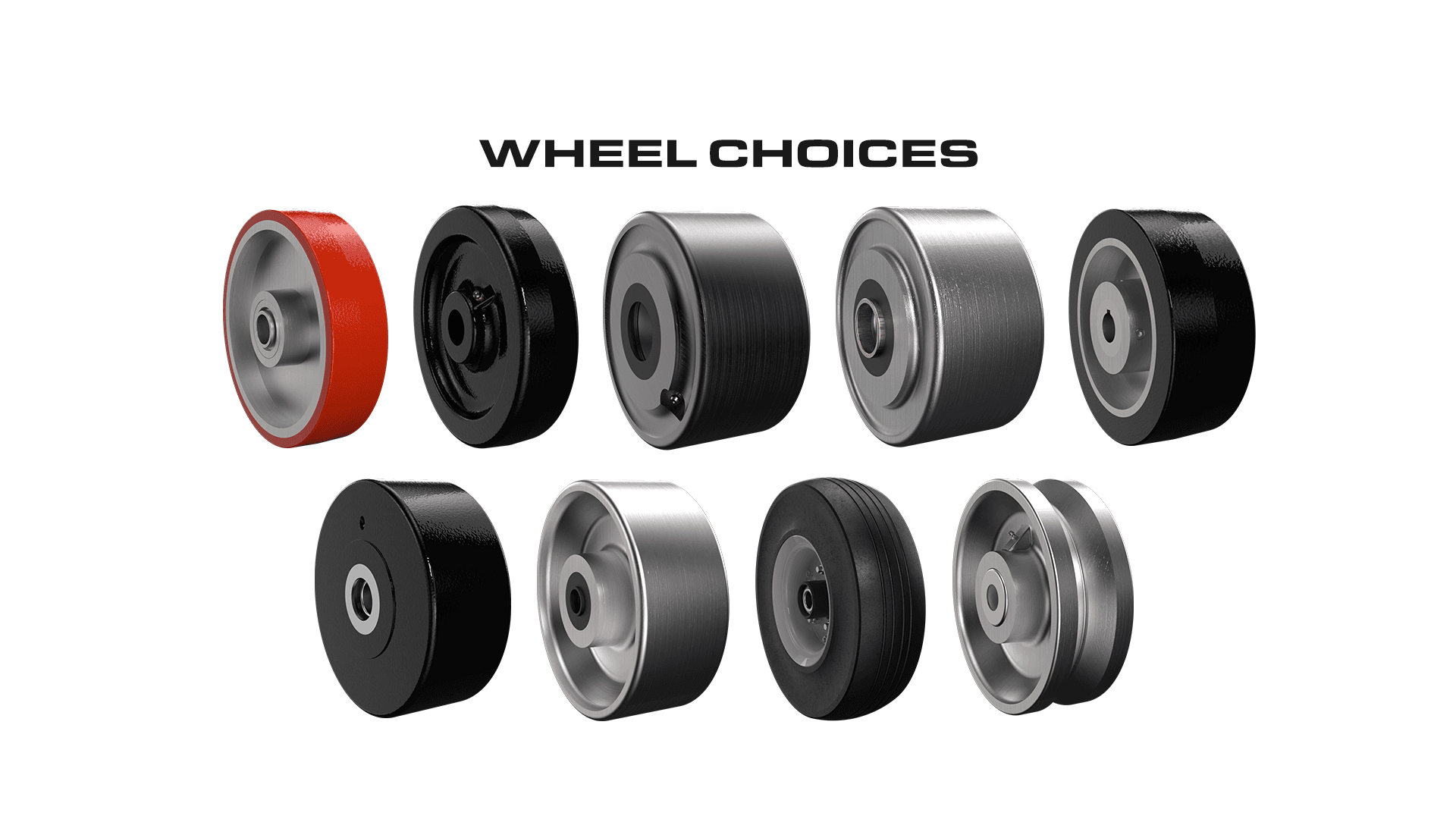

Wheel Options: Polyurethane: (95A Standard, T/R85A) ▪ Metal: (Forged Steel, Cast Iron, Ductile Iron) ▪ Composite: (Phenolic, NYTEC) ▪ Mold On Rubber ▪ Pneumatic ▪ Track Wheels
Finish: Clear zinc plating.
OPTIONS
BRAKES
Poly Lock
Wrap Around
Dual Side
Single Side
Face Contact
SWIVEL LOCKS
Factory Installed
Demountable
Foot Actuated
Passive
SEALED SWIVEL SECTION
SEALED WHEELS
TOE GUARD
NOT SURE WHICH CASTER IS RIGHT FOR YOUR APPLICATION?
