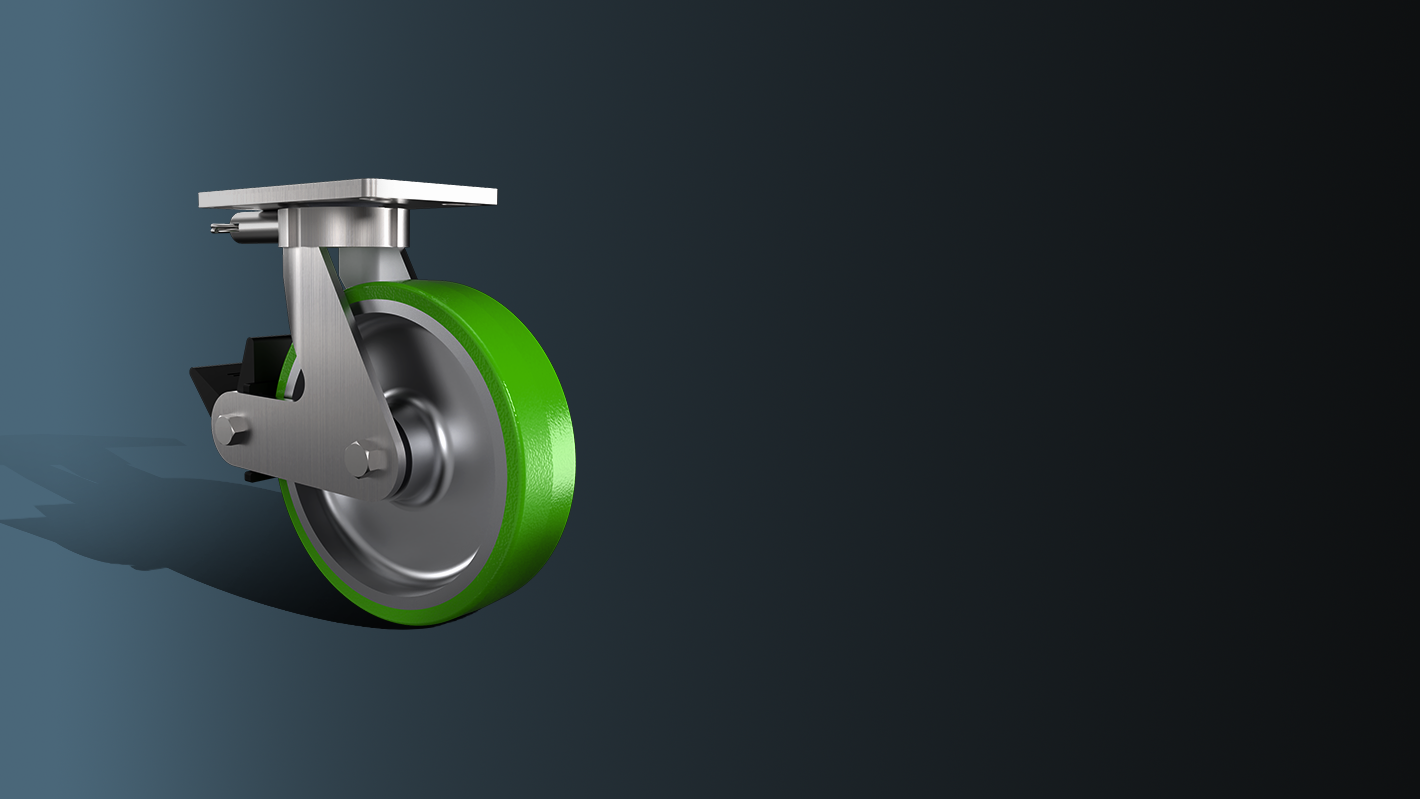

51-SERIES
Excellent for light powered applications, bakery dough troughs, portable work benches, platform trucks, towlines, utility carts, tooling fixtures, scrap metal carriers, drywall dollies, gantry cranes, automated guided vehicles, fiberglass lay-up molds, and other applications.
FEATURES
Swivel Section: High alloy swivel section is precision machined to accommodate 3/8” diameter ball bearings. Swivel sections are through hardened for durability.
Legs: 1/4” x 2” steel, formed and continuously welded inside and outside to the yoke base.
Axle: 1/2” diameter.
Lubrication: Pre-lubricated before shipping.

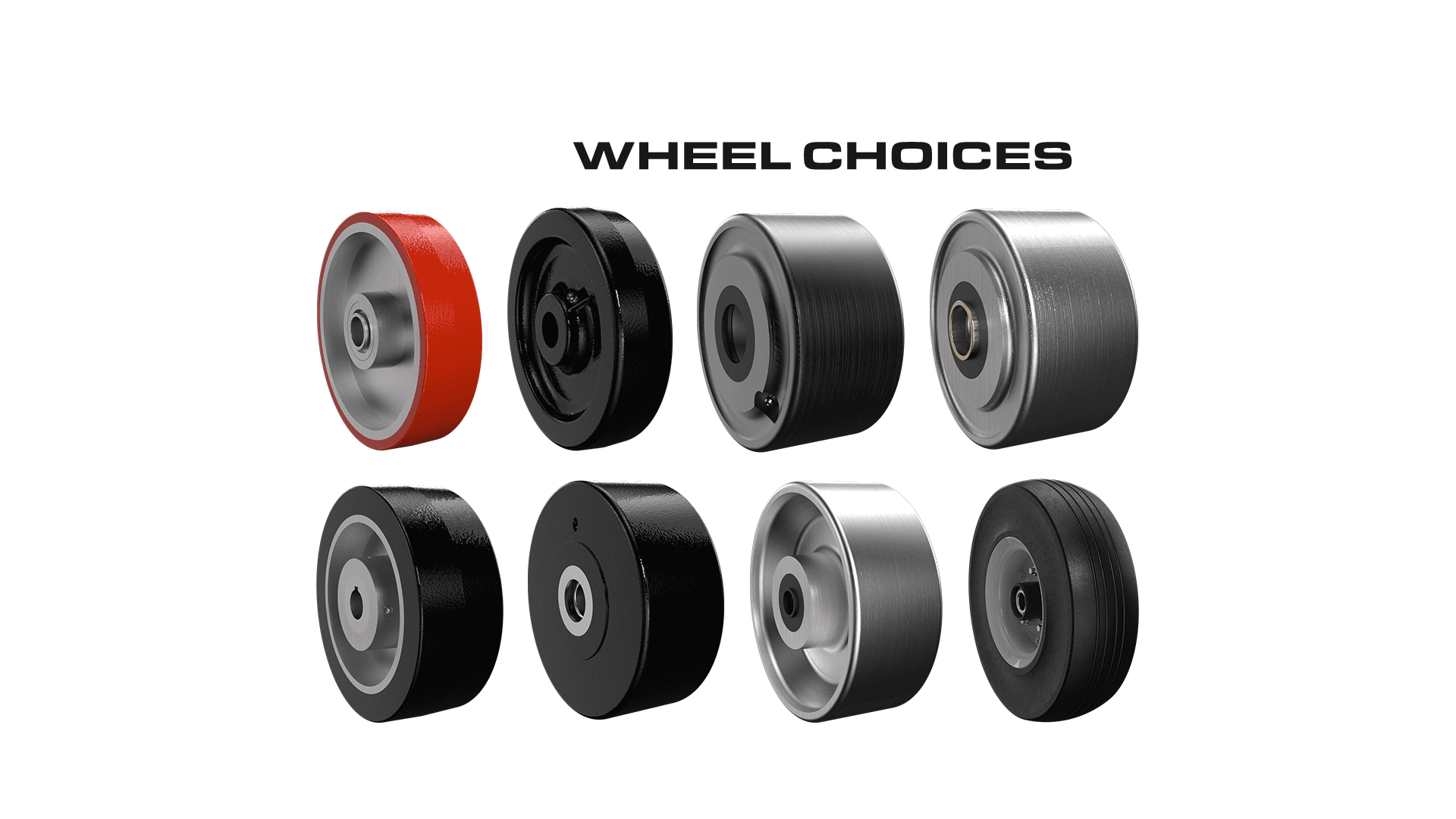

Wheels: 4” to 8” diameter wheels are available with straight roller bearings or ball bearings for ease in rolling.
Finish: Clear zinc plating.
OPTIONS
BRAKES
Cam
Poly Lock
Wrap Around
Dual Side
Single Side
Face Contact
SWIVEL LOCKS
Factory Installed
Demountable
Foot Actuated
Passive
SEALED SWIVEL SECTION
SEALED WHEELS
TOE GUARD
