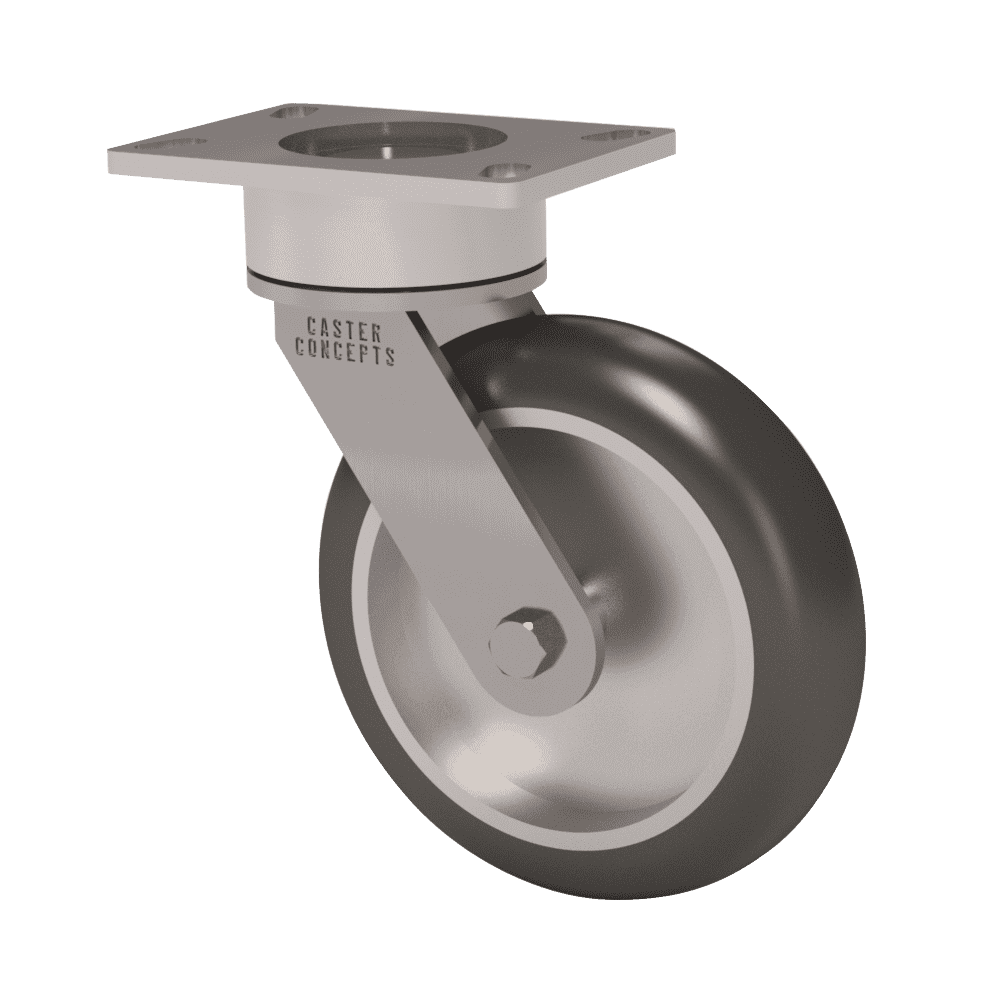

8x2 Round Tread T/R-95 Polyurethane Swivel Caster

SKU: 57-08202-56-1

8x2 Round Tread T/R-95 Polyurethane Swivel Caster

Caster
  • Load rating of 1100 lbs.
  • Overall height of 10.13 inches
  • T/R 95A PU Wheel - High tear resistance, extended wear, ergonomic benefits, good solvent and oil resistance. (Shore 95A Hardness)

Features

Easy SwivelErgonomic CastersMaintenance Free CastersRound Tread
CAD DOWNLOAD

Specifications

Series
57
Capacity
1,100
Overall Height
10.13"
Bearing Type
Precision Ball Bearing
Wheel Material
T/R-95 Polyurethane
Wheel Type
Round Tread
Wheel Diameter
8"
Wheel Width
2"
Wheel Configuration
Single Wheel
Caster Material
Steel
Caster Style
Swivel Caster
Caster Type
Maintenance Free
Swivel Radius
6.82"
Swivel Lead
2.75"
Bolt Size
0.5
Top Plate Size
6.25 x 4.5
Bolt Hole Pattern
2.438 x 4.938 Slotted to 3.375 x 5.25

Description

This 8-inch by 2-inch 57 series caster provides the ultimate maintenance free combination. The swivel section is made from a high quality precision ball bearing. The raceways of the bearing are hardened for long life and the bearing is then sealed with neoprene seals to assure protection from contamination. No greasing is necessary. The smooth swivel action combined with an extended lead, help to lower ergonomic forces and minimize employee injuries. The T/R95 Polyurethane caster wheel features our specialized formulation designed for challenging applications. With superior tear resistance and increased strength, this wheel ensures extended wear and durability even in demanding environments. The T/R 95 tread offers enhanced ergonomic benefits and a longer service life compared to standard 95A polyurethane. Featuring precision sealed ball bearings, the caster provides quiet operation and requires no maintenance, all with a load rating of 1100 lbs.
