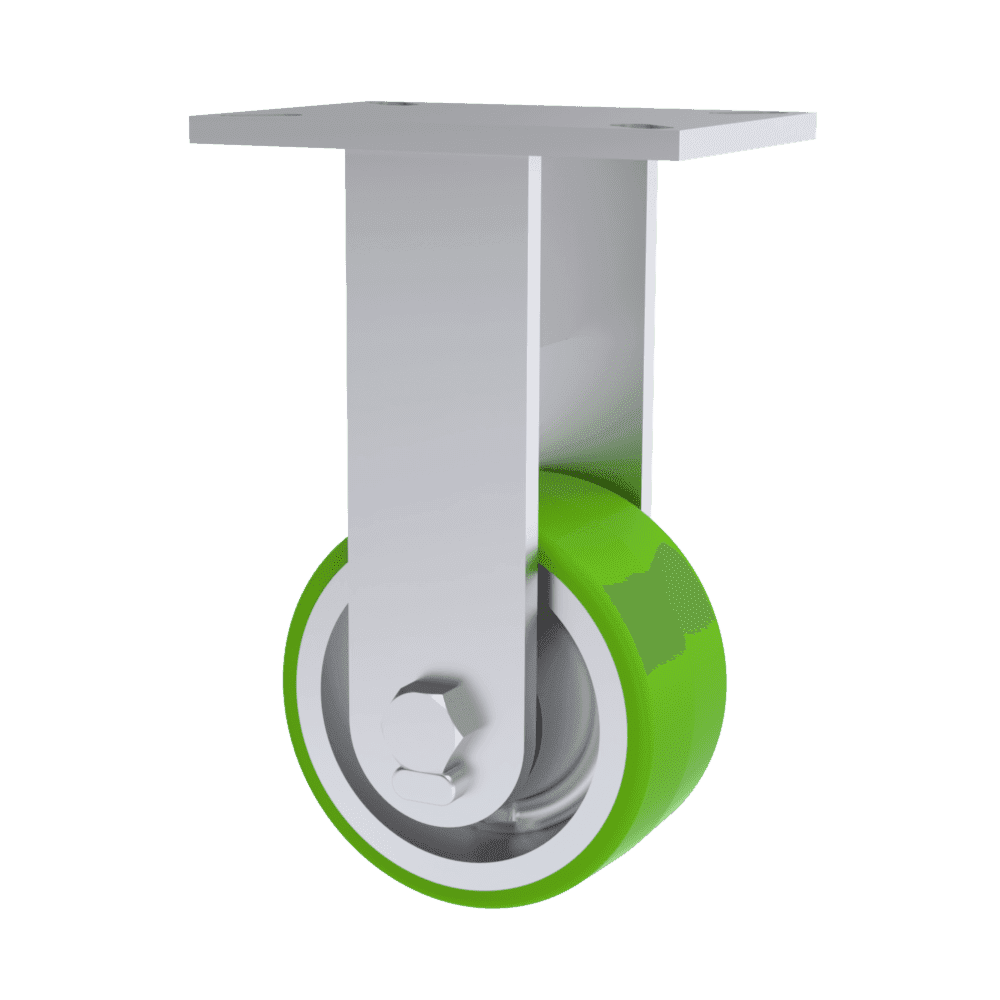

6x3 ErgoTread Rigid Caster

Caster

Load rating of 1560 lbs.
Overall height of 11.25 inches
85A ErgoTread PU Wheel - Energy-returning, ergonomic formulation, reduces strain and risk of injuries, debris-resistant, noise-reducing. (Shore 85A Hardness)

Features

Ergonomic CastersFlat Faced CastersReduce Push Force

Specifications

Series

154

Capacity

1,560

Overall Height

11.25"

Bearing Type

Precision Ball Bearing

Wheel Material

ErgoTread

Wheel Diameter

Wheel Width

Wheel Configuration

Single Wheel

Caster Material

Steel

Caster Style

Rigid Caster

Bolt Size

0.5

Top Plate Size

5 x 7.25

Bolt Hole Pattern

3.375 x 5.25 Slotted to 4.125 x 6.125

Temp (Continuous)

-50 to 200

Temp (Intermittent)

-50 to 175

Description

This 6-inch by 3-inch 154 series Swivel on Swivel (SoS) Caster, is a high-performance solution designed for exceptional maneuverability and reduced push/pull forces. The caster features 1/4" x 2" steel legs that are formed and continuously welded for maximum strength and stability. The 1/2" diameter axle ensures durability and reliability. The wheel utilizes our ErgoTread formulation that consists of a high-rebound, energy returning polyurethane. Featuring precision sealed ball bearings, the caster wheel provides quiet operation and requires no maintenance, all with a load rating of 1560 lbs.
