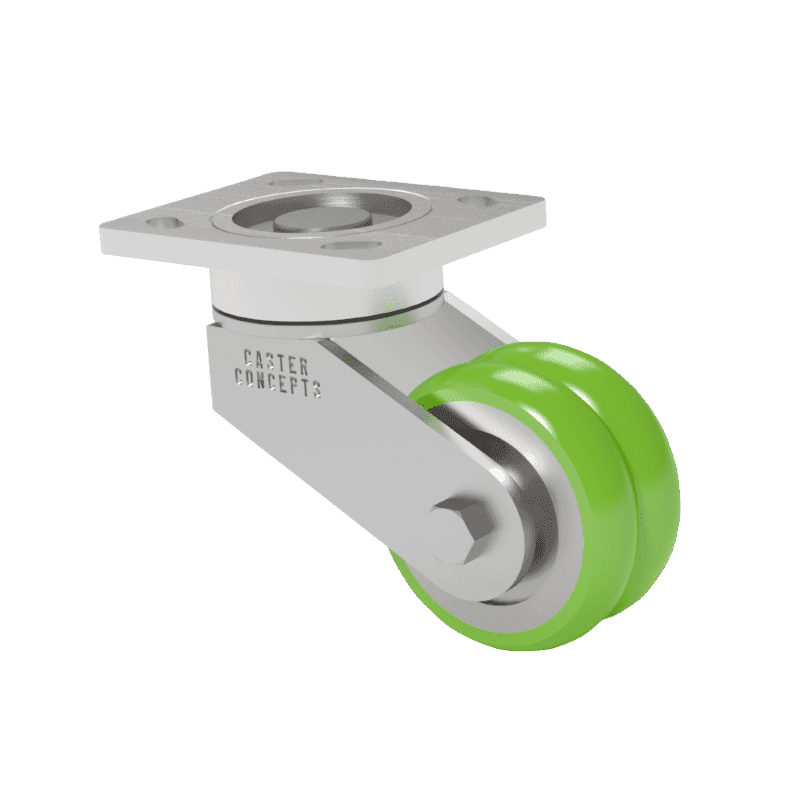

4x2 TWERGO ErgoTread Swivel Caster

SKU: 55EXT-04204-44-1

4x2 TWERGO ErgoTread Swivel Caster

Caster
  • Load rating of 570 lbs.
  • Overall height of 5.63 inches
  • 85A ErgoTread PU Wheel - Energy-returning, ergonomic formulation, reduces strain and risk of injuries, debris-resistant, noise-reducing. (Shore 85A Hardness)

Features

Easy SwivelErgonomic CastersKingpinless CasterReduce Push ForceTwin Wheel

Specifications

Series
55EXT
Capacity
570
Overall Height
5.63"
Bearing Type
Annular Ball Bearing
Wheel Material
ErgoTread
Wheel Type
TWERGO
Wheel Diameter
4"
Wheel Width
2"
Wheel Configuration
Single Wheel
Caster Material
Steel
Caster Style
Swivel Caster
Caster Type
Kingpinless
Swivel Radius
5.34"
Swivel Lead
3.25"
Bolt Size
0.375
Top Plate Size
4 x 5
Bolt Hole Pattern
2.625 x 3.625 Slotted to 3 x 3

Description

This 4-inch by 2-inch 55 Series caster with extended swivel lead was designed to improve material handling operations through increased ergonomics. This caster combines exceptional strength, durability, and maneuverability for challenging environments. The extended swivel lead provides enhanced maneuverability and precise control, significantly improving ergonomic conditions for operators. By reducing the force and effort required to move carts or equipment, it minimizes operator fatigue and the risk of injuries. TWERGO Wheel Designed with ergonomics in mind, TWERGO minimizes overexertion injuries by reducing initial push force and wheel friction during movement. Featuring a unique multi-wheel design and independently rotating parabolic wheels, TWERGO provides exceptional maneuverability and reduced friction, resulting in smoother navigation and less strain on operators. On average, you’ll receive up to a 25% reduction in rolling resistance, allowing for easier movement and increased productivity. The wheel utilizes our ErgoTread formulation that consists of a high-rebound, energy returning polyurethane. Loaded with annular ball bearings, this wheel provides maximum rolling ease and quiet operation when needed. Annular ball bearings are best suited for light to medium-duty loads. Bearing is pre-assembled and the entire unit is mounted in the wheel, all together, this caster is rated for 570 lbs.
