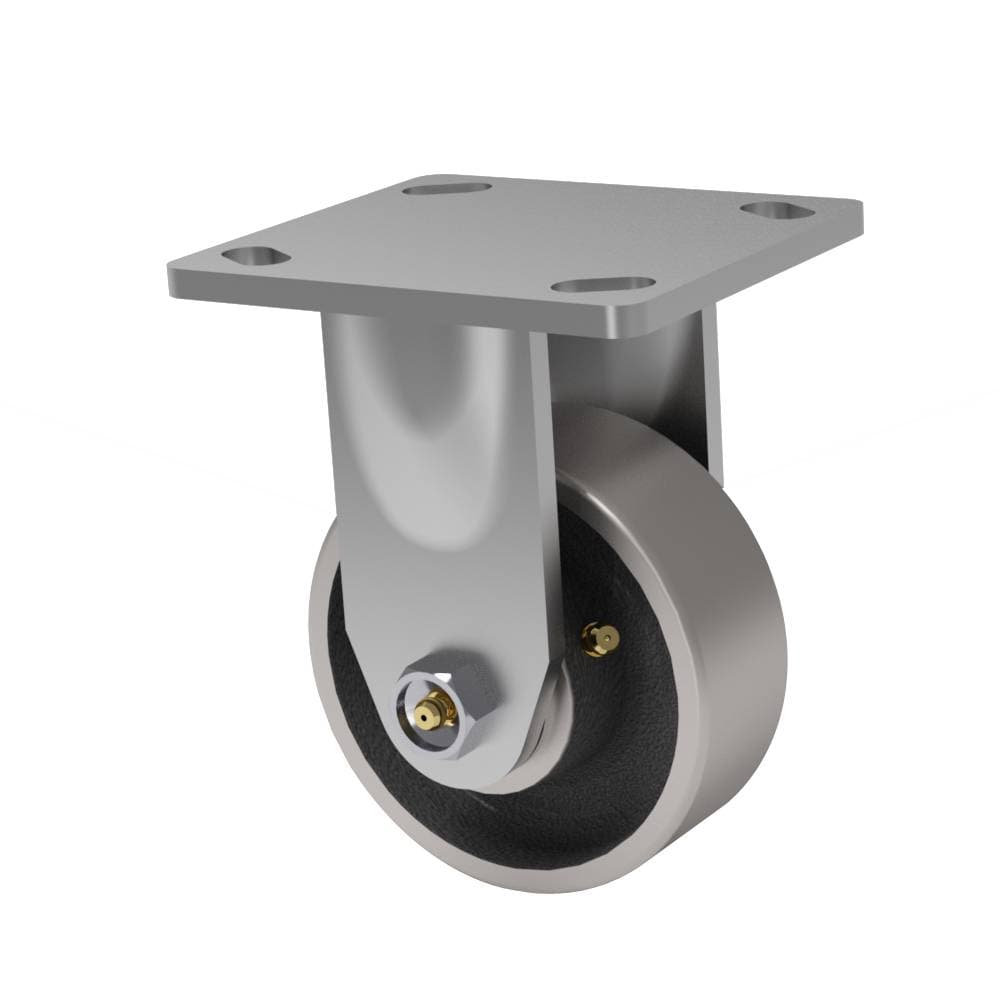

4x1.5 Forged Steel Rigid Caster

SKU: 30-04101-20-2

4x1.5 Forged Steel Rigid Caster

CasterMedium Heavy Duty Casters for 900, 1000, and Up to 1,999 lbsWheelMetal WheelsRigid Casters
  • Load rating of 900 lbs.
  • Overall height of 5.63 inches
  • Cast Iron Wheel - Durable and strong wheel material with high load-bearing capacity, suitable for heavy-duty applications. Resistant to wear and abrasion.

Features

Flat Faced Casters

Specifications

Series
30
Capacity
900
Overall Height
5.63"
Bearing Type
Straight Roller Bearing
Wheel Material
Forged Steel
Wheel Diameter
4"
Wheel Width
1.5"
Wheel Configuration
Single Wheel
Caster Material
Steel
Caster Style
Rigid Caster
Bolt Size
0.375
Top Plate Size
4 x 4.5
Bolt Hole Pattern
2.625 x 3.625 Slotted to 3 x 3
Temp (Continuous)
-40 to 320
Temp (Intermittent)
-40 to 320

Description

This 4-inch by 1.5-inch cost-effective 30 Series Medium Duty Caster, is engineered for durability, this line of rigid casters offers rugged performance at an affordable price point. Combined with Forged Steel wheels, these casters become a powerhouse solution for heavy-duty industrial applications. These wheels are hot forged from high carbon steel billets, enhancing their grain structure, ductility, and tensile strength (64,000 psi). With precision machining, they meet tight tolerances, ensuring flat surfaces with rounded edges. Offering the greatest load capacity, impact strength, and rollability among caster wheels. With the proper wheels and bearings, these wheels are capable of withstanding temperatures up to 800 degrees. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 900 lbs.
