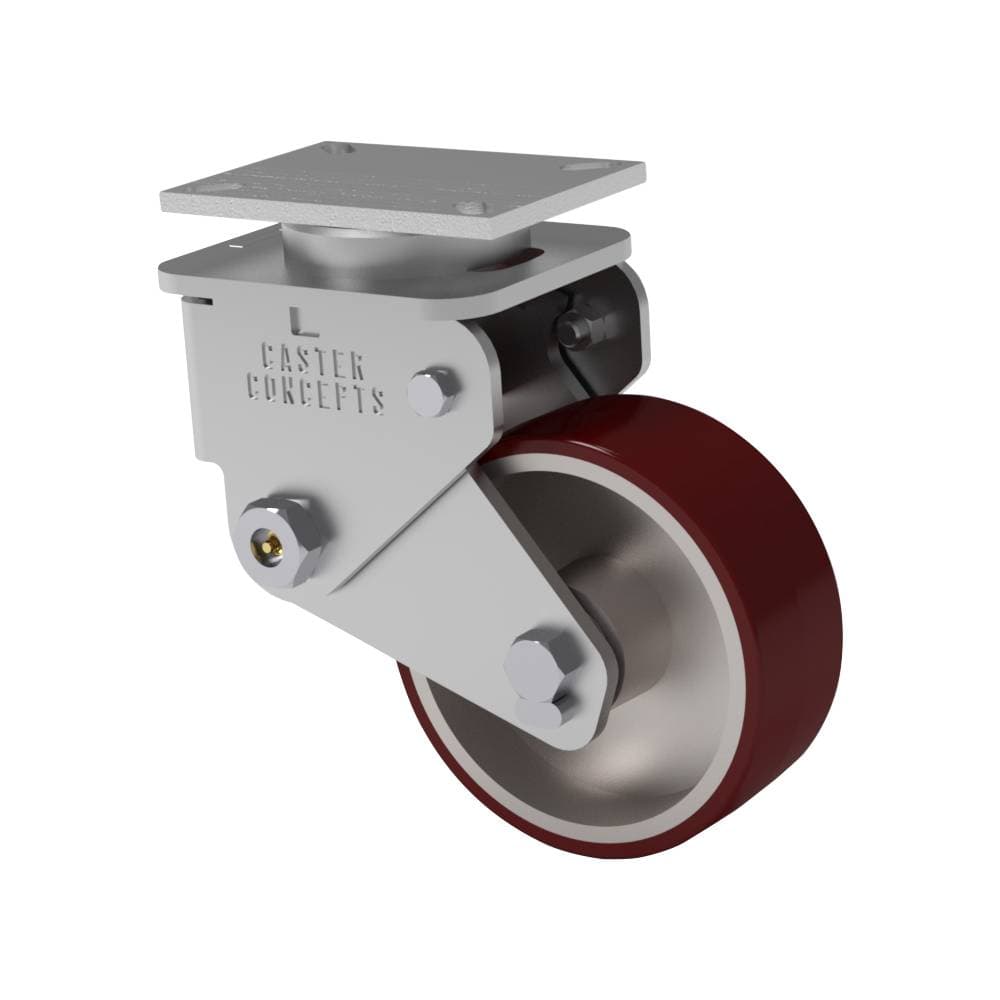

10x3 Standard Polyurethane Spring Loaded Swivel Caster

SKU: 73-10301-60-1

10x3 Standard Polyurethane Spring Loaded Swivel Caster

Caster
  • Load rating of 1100 lbs.
  • Overall height of 13.5 inches
  • 95A Standard PU Wheel - Non-marking, high tear strength, resistance to flat spotting, good solvent and water resistance. (Shore 95A Hardness)

Features

Flat Faced CastersShock AbsorbingSpring Loaded
CAD DOWNLOAD

Specifications

Series
73
Capacity
1,100
Overall Height
13.5"
Bearing Type
Straight Roller Bearing
Wheel Material
Standard Polyurethane
Wheel Diameter
10"
Wheel Width
3"
Wheel Configuration
Single Wheel
Caster Material
Steel
Caster Style
Swivel Caster
Caster Type
Spring Loaded
Swivel Radius
9.62"
Swivel Lead
4.5"
Bolt Size
0.5
Top Plate Size
5 x 7.25
Bolt Hole Pattern
3.375 x 5.25 Slotted to 4.125 x 6.125

Description

This 10-inch by 3-inch 73 series Spring-Loaded caster is designed to absorb shocks and reduce noise, these casters excel on uneven surfaces and protect delicate loads. Our expert engineers determine the ideal spring deflection, ensuring reliable performance without causing damage. Built with high-strength chrome vanadium springs, they offer durability and cushioned loads, while the long swivel lead minimizes vibration during towing. Paired with our general-purpose, Standard Polyurethane (Shore 95A Hardness) wheel, this caster becomes good for numerous industrial applications. It is non-marking with high tear strength and resistance to flat spotting, as well as a good solvent and water resistance. Packed with our straight roller bearings, which are most effective for heavy loads, and are a great option when facing excessive thrust loading, these casters are rated for 1100 lbs.
