Aerospace Portal

Caster Concepts builds strong relationships with our Aerospace customers by focusing on their design and manufacturing needs.

Collaborating closely with our customers’ designers and engineers enables us to turn around models and drawings quickly. And in an industry where there is little margin for error, these important interactions help us to develop specific-use casters with built-in safety factors to prevent caster failure.

We also have a variety of products designed with ergonomics in mind to help our customers move heavy loads easily and without incident.

Ergo & Maintenance Free Options

Product Image Capacity Part Number Description CAD STEP
4,725 Lbs. SP18121702

87 series, 12 x 3 T/R 95 Thick Poly,
15-3/4 OAH, 10.30″ swivel radius

 PDF STEP
3,800 Lbs. SP18122801

2-77TM series, 8 X 3 ET-85 Twergo®,
10-1/2 OAH, 9.50″ swivel radius

 PDF STEP
3,500 Lbs SP18123102

2-77TM series,
10 X 3 T/R-95 Twergo®, 12-1/2 OAH, 11.44 swivel radius

 PDF STEP
3,400 Lbs. SP18121104

77 series, 12 x 3 T/R 95 Twergo®,
15-1/2 OAH, 10.80″ swivel radius

 PDF STEP
2,070 Lbs. SP18120603

77 series, 6 x 3 T/R 95 Twergo®,
8-1/2 OAH, 10.80″ swivel radius

 PDF STEP
1,500 Lbs. SP18123101

57 series, 8 x 2 T/R 95 Twergo®,
10-1/8 OAH, 7.80″ swivel radius

 PDF STEP
1,180 Lbs. SP18121105

57 series, 8 x 2 ET-85 Twergo®,
10-1/8 OAH, 8.50″ swivel radius

 PDF STEP
910 Lbs. SP18120704

55 series, 6 x 2 ET-85 Twergo®,
7-1/2 OAH, 10.20″ swivel radius

 PDF STEP
750 Lbs. SP18120503

37 series, 8 x 2 ET-85 Twergo®,
10-1/8 OAH, 7.50″ swivel radius

 PDF STEP
350 Lbs. SP18120102

27 series, 8 x 2 ET-85 Twergo®,
10-1/8 OAH, 7.30″ swivel radius

 PDF STEP

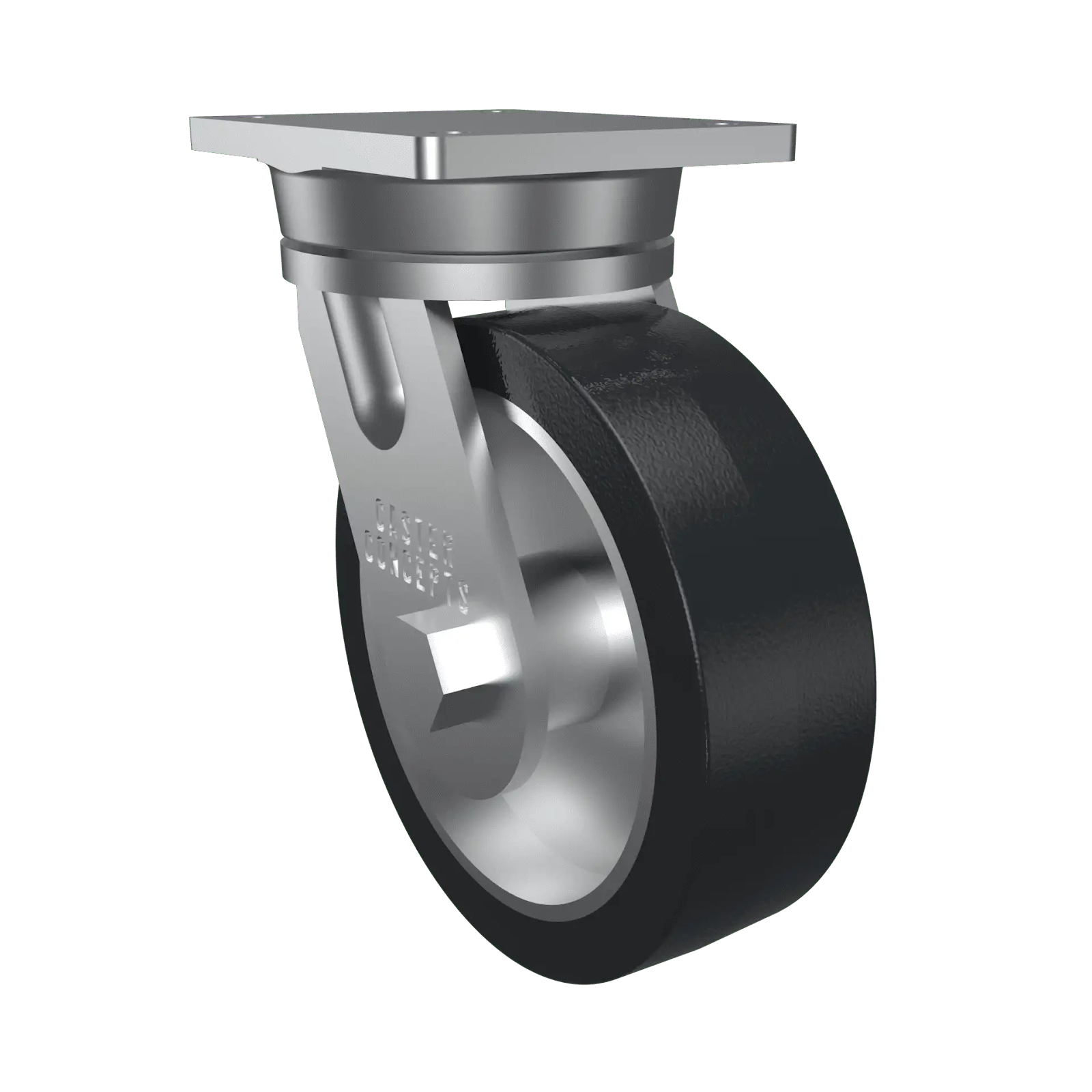

High-Temp

Product Image Capacity Part Number Description CAD STEP
675 Lbs. SP181217

2-81 series, 12 x 3 High Temp. Phenolic,
15-1/2 OAH, 13.00″ swivel radius

 PDF STEP
675 Lbs. SP18121001

2-61 series, 8 x 2 High Temp. Phenolic,
10-1/8 OAH, 10.25″ swivel radius

 PDF STEP
2,400 Lbs. SP18120502

61 series, 10 x 3 High Temp. Phenolic,
11-1/2 OAH, 12.00″ swivel radius

 PDF STEP
1,100 Lbs SP18121402

51 series, 8 x 2 High Temp. Phenolic,
10-1/8 OAH, 10.5″ swivel radius

 PDF STEP

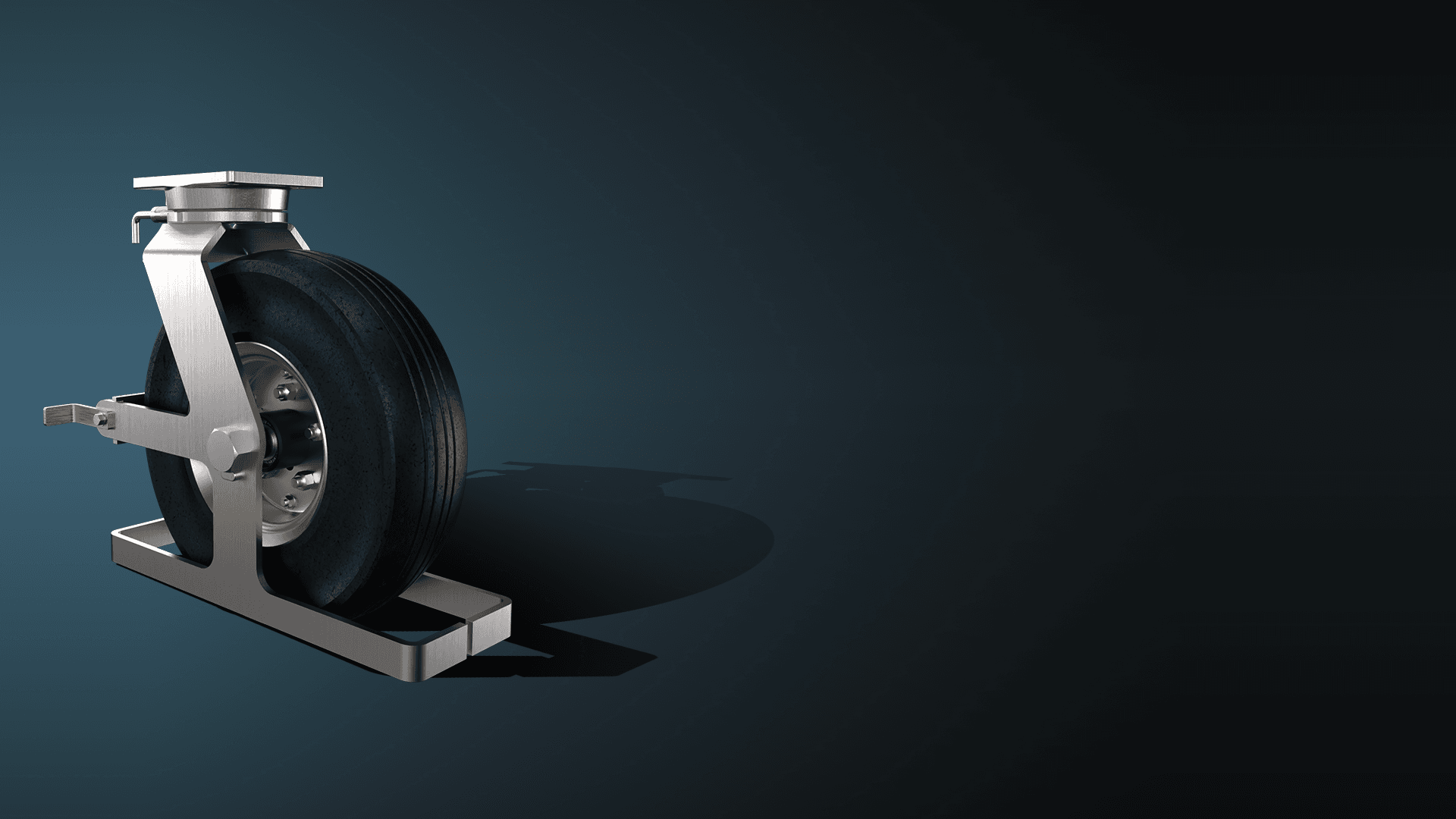

Pneumatic

Product Image Capacity Part Number Description CAD STEP
10,000 Lbs. SP18122101

2-99 series, 18 x 7 Pneumatic,
20.90 OAH, 18.75″ swivel radius

 PDF STEP
5,550 Lbs. SP18120401

2-91 series, 23 x 6 Pneumatic,
26-1/4 OAH, 21.35″ swivel radius

 PDF STEP
3,630 Lbs. SP18120101

91 series, 25 x 6 Pneumatic,
28-3/4 OAH, 20.25″ swivel radius

 PDF STEP
2,420 Lbs. SP181228

91 series, 21 x 6 Pneumatic,
24-1/4 OAH, 17.5″ swivel radius

 PDF STEP
1,230 Lbs. SP18121103

71 series, 16 x 6 Pneumatic,
19-1/8 OAH, 14.5″ swivel radius

 PDF STEP

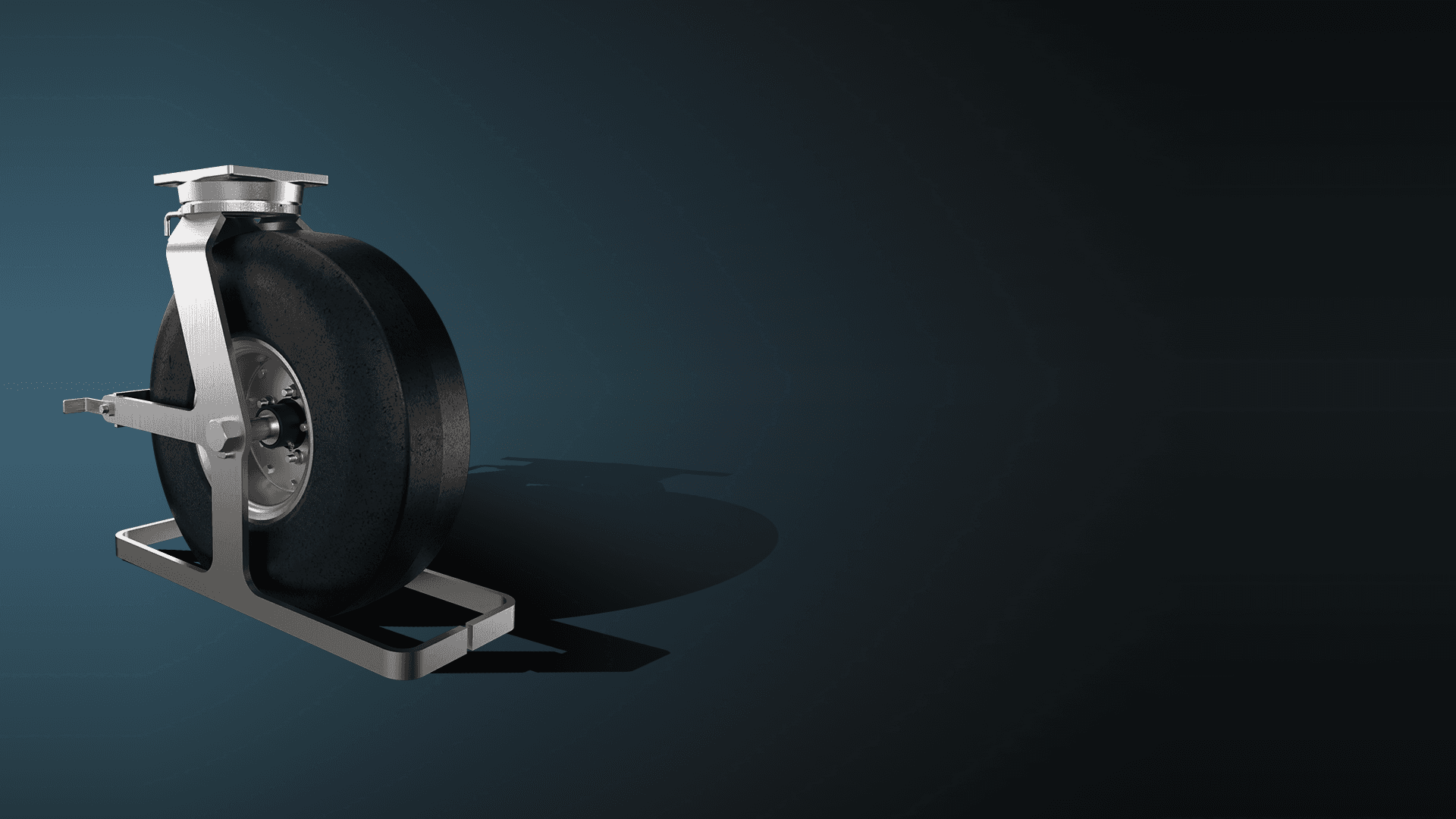

Solid Pneumatic

Product Image Capacity Part Number Description CAD STEP
5,800 Lbs. SP18120602

2-81 series, 16 x 5 Solid Pneumatic,
19.13 OAH, 17.00″ swivel radius

 PDF STEP
3,300 Lbs. SP18121203

81 series, 18 x 5 Solid Pneumatic,
21-1/2 OAH, 15.75″ swivel radius

 PDF STEP
2,900 Lbs. SP181220

71 series, 16 x 5 Solid Pneumatic,
19.13 OAH, 14.5″ swivel radius

 PDF STEP
1,200 Lbs. SP18120201

61 series, 12 x 4 Solid Pneumatic,
15.58 OAH, 11.5″ swivel radius

 PDF STEP

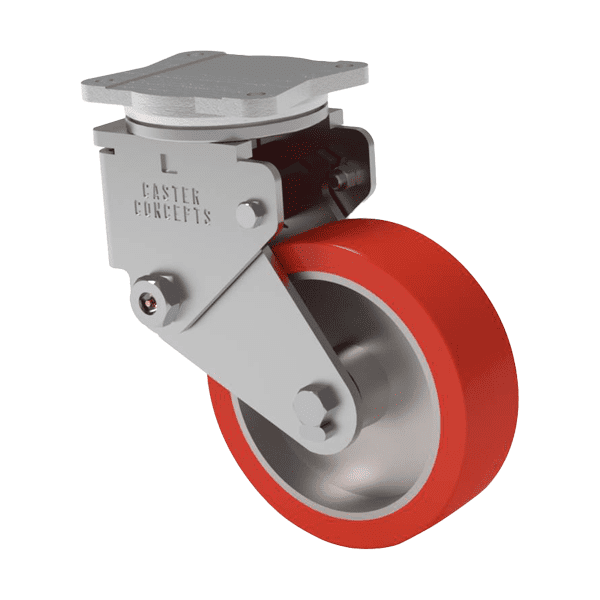

Spring Load - Aluminum

Product Image Capacity Part Number Description CAD STEP
5,084 Lbs. SP18121701

339 series, 16 x 5 Mold On Rubber,
21.88 OAH (Unloaded), 14.25″ swivel radius

 PDF STEP
4,750 Lbs. SP18120303

138 series, 10 x 4 95A Poly,
15.75 OAH (Unloaded), 10.00″ swivel radius

 PDF STEP
3,150 Lbs. SP18120601

39 series, 12 x 3 95A Poly,
17 OAH (Unloaded), 10.00″ swivel radius

 PDF STEP
2,600 Lbs. SP181227

39 series, 10x 3 95A Poly,
14.375 OAH (Unloaded), 9.00″ swivel radius

 PDF STEP
1,400 Lbs. SP18121301

39 series, 10x 3 95A Poly,
14.375 OAH (Unloaded), 9.00″ swivel radius

 PDF STEP
955 Lbs. SP18122602

38 series, 8 x 2.5 95A Poly,
11-7/8 OAH (Unloaded), 7.35″ swivel radius

 PDF STEP

Spring Load - Steel

Product Image Capacity Part Number Description CAD STEP
25,000 Lbs. SP18121803

539 series, 15 x 5 95A Poly,
25.94 OAH (Unloaded), 19.25″ swivel radius

 PDF STEP
16,000 Lbs. SP181210

539 series, 15 x 5 95A Poly,
26.44 OAH (Unloaded), 19.50″ swivel radius

 PDF STEP
9,824 Lbs. SP181231

440 series, 10 x 5 95A Poly,
18.31 OAH (Unloaded), 12.00″ swivel radius

 PDF STEP
12,500 Lbs. SP18122603

2-99 series, 12 x 5 92A HPPT Poly,
16-1/2 OAH (Unloaded), 19.25″ swivel radius

 PDF STEP
6,000 Lbs. SP18122001

93 series, 10 x 5 92A HPPT Poly,
16-1/4 OAH (Unloaded), 12.65″ swivel radius

 PDF STEP
2,500 Lbs. SP181221

84 series, 10 x 3 85A Thick Poly,
13-1/2 OAH (Unloaded), 14.00″ swivel radius

 PDF STEP
1,700 Lbs. SP18120702

83 series, 10 x 3 85A Thick Poly,
14-1/2 OAH (Unloaded), 13.25″ swivel radius

 PDF STEP
1,100 Lbs. SP18120501

73 series, 8 x 3 85A Thick Poly,
12 OAH (Unloaded), 11.925″ swivel radius

 PDF STEP

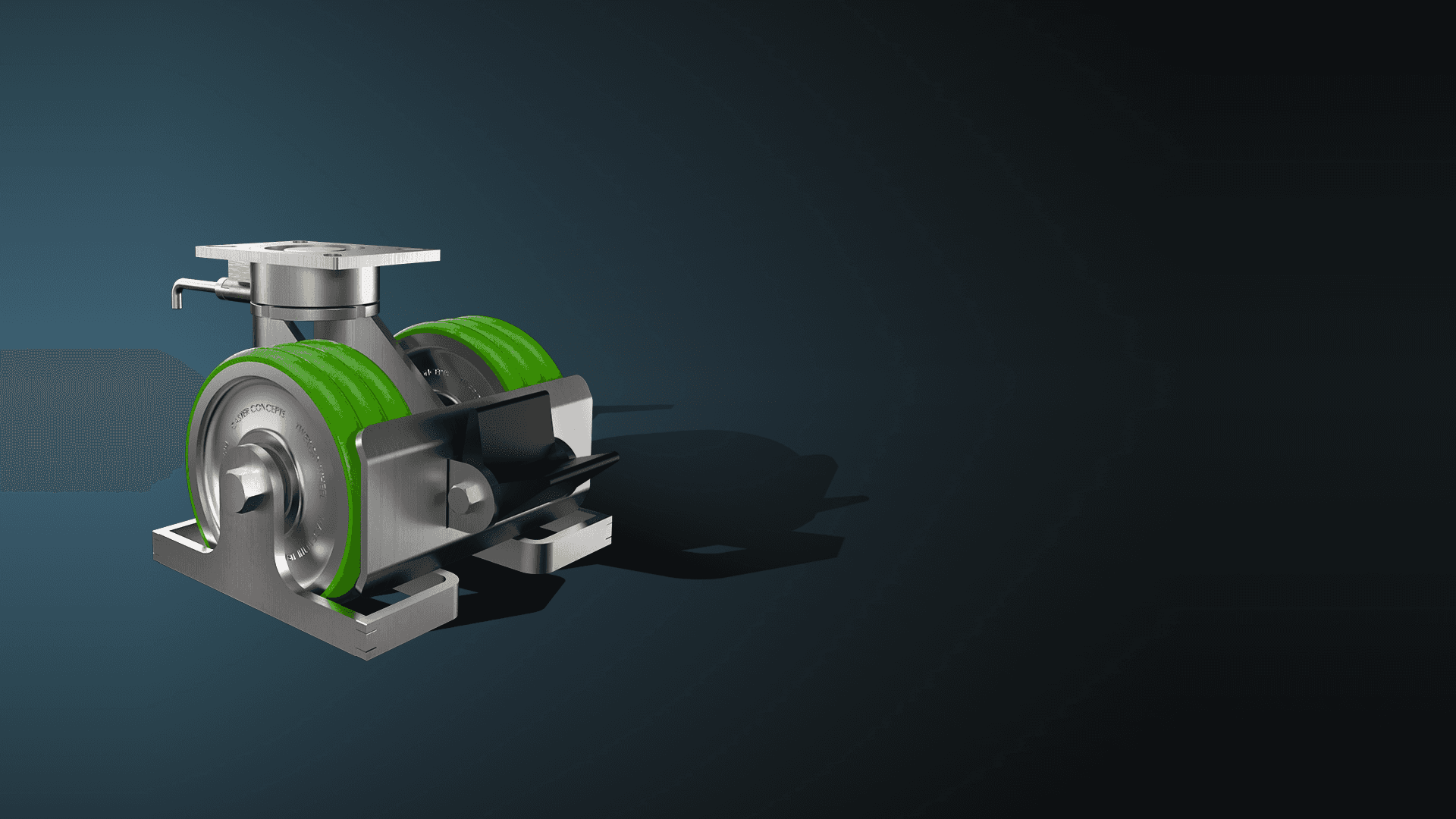

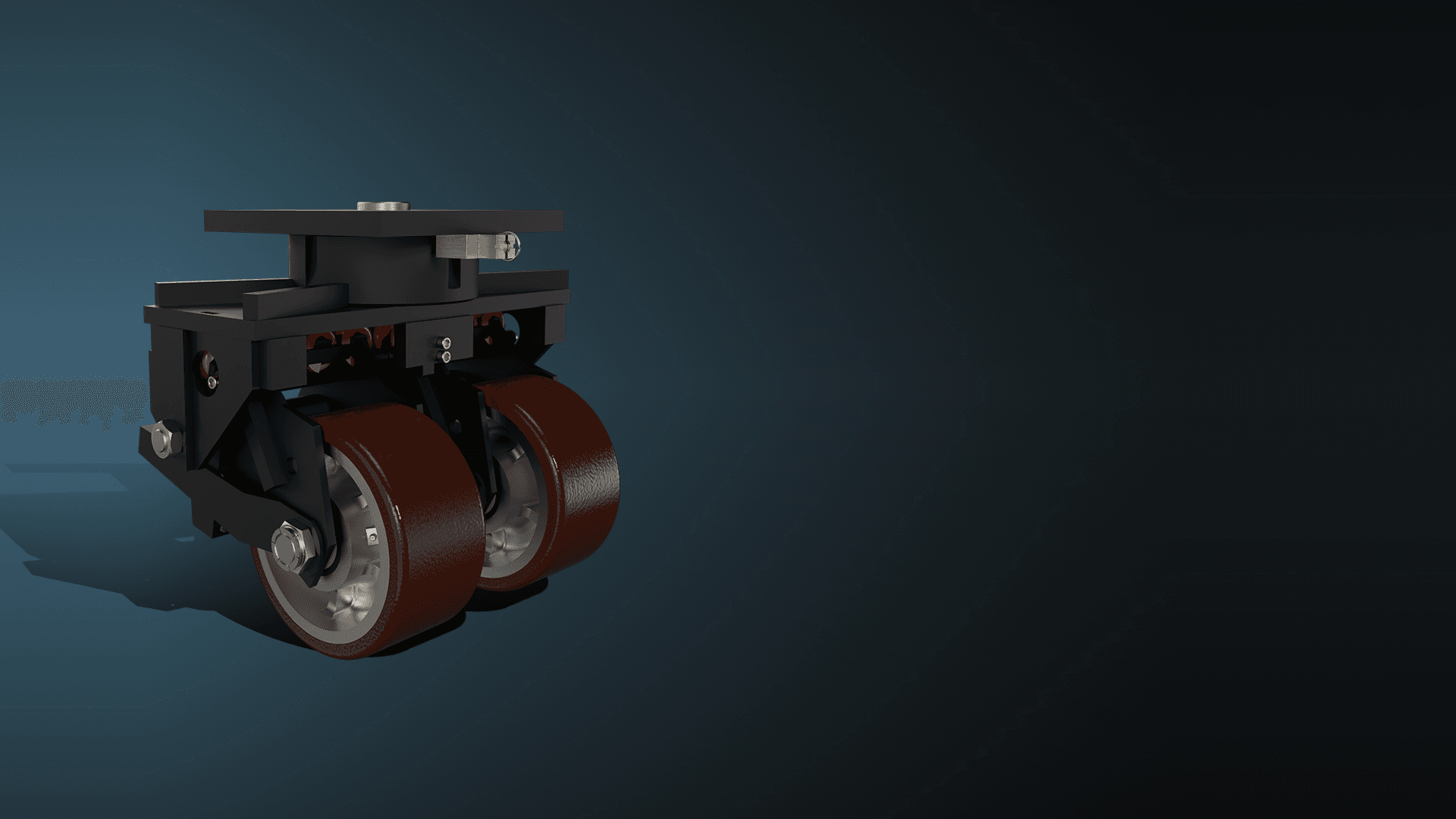

Standard Dual Wheel

Product Image Capacity Part Number Description CAD STEP
17,100 Lbs. SP181204

2-99 series, 18 x 9 T/R 95 Thick Poly,
22 OAH, 18.25″ swivel radius

 PDF STEP
11,700 Lbs. SP18120703

2-91 series, 10 x 4 T/R 95 Thick Poly,
13-1/2 OAH, 9.75″ swivel radius

 PDF STEP
7,800 Lbs. SP18121901

859 2-81 series, 8 x 3 T/R 95 Thick Poly,
11 OAH, 8.50″ swivel radius

 PDF STEP
4,100 Lbs. SP181202

2-71 series, 6 x 3 85A Thick Poly,
8 OAH, 9.75″ swivel radius

 PDF STEP
3,500 Lbs. SP18121902

2-61 series, 8 x 3 T/R 95 Twergo®,
10-1/8 OAH, 7.95″ swivel radius

 PDF STEP

Standard Single Wheel

Product Image Capacity Part Number Description CAD STEP
10,000 Lbs. SP18122701

91 series, 20 x 5 T/R 95 Thick Poly,
23 OAH, 15.50″ swivel radius

 PDF STEP
5,000 Lbs. SP18121204

81 series, 10 x 4 T/R 95 Thick Poly,
12-1/2 OAH, 8.75″ swivel radius

 PDF STEP
3,000 Lbs. SP18120302

71 series, 12 x 3 T/R 95 Twergo®,
15-1/2 OAH, 10.00″ swivel radius

 PDF STEP
2,800 Lbs. SP18121802

61 series, 8 x 3 T/R 95 Thin Poly,
10-1/8 OAH, 7.30″ swivel radius

 PDF STEP
1,000 Lbs. SP181201

57 series, 8 x 2 ET-85 Twergo®,
10-1/8 OAH, 7.67″ swivel radius

 PDF STEP

Swivel on Swivel Options

Product Image Capacity Part Number Description CAD STEP
8,000 Lbs. SPD18121302

2-91 series, 10 x 4 85A Thick Poly,
16-1/2 OAH, 13.53″ swivel radius

 PDF STEP
3,400 Lbs. SP18121703

154 series, 12 x 3 T/R 95 Twergo®,
18-1/4 OAH, 12.35″ swivel radius

 PDF STEP
2,500 Lbs. SP18121403

134 series, 10 x 2 T/R 95 Twergo®,
15.25 OAH, 10.50″ swivel radius

 PDF STEP
1,500 Lbs. SP18121205

112 series, 10 x 2 T/R 95 Twergo®,
13-7/8 OAH, 10.30″ swivel radius

 PDF STEP
1,000 Lbs. SP18121002

110 series, 8 x 2 ET-85 Twergo®,
12 OAH, 8.30″ swivel radius

 PDF STEP
910 Lbs. SP18121303

110 series, 6 x 2 ET-85 Twergo®,
9-3/8 OAH, 6-3/8″ swivel radius

 PDF STEP
