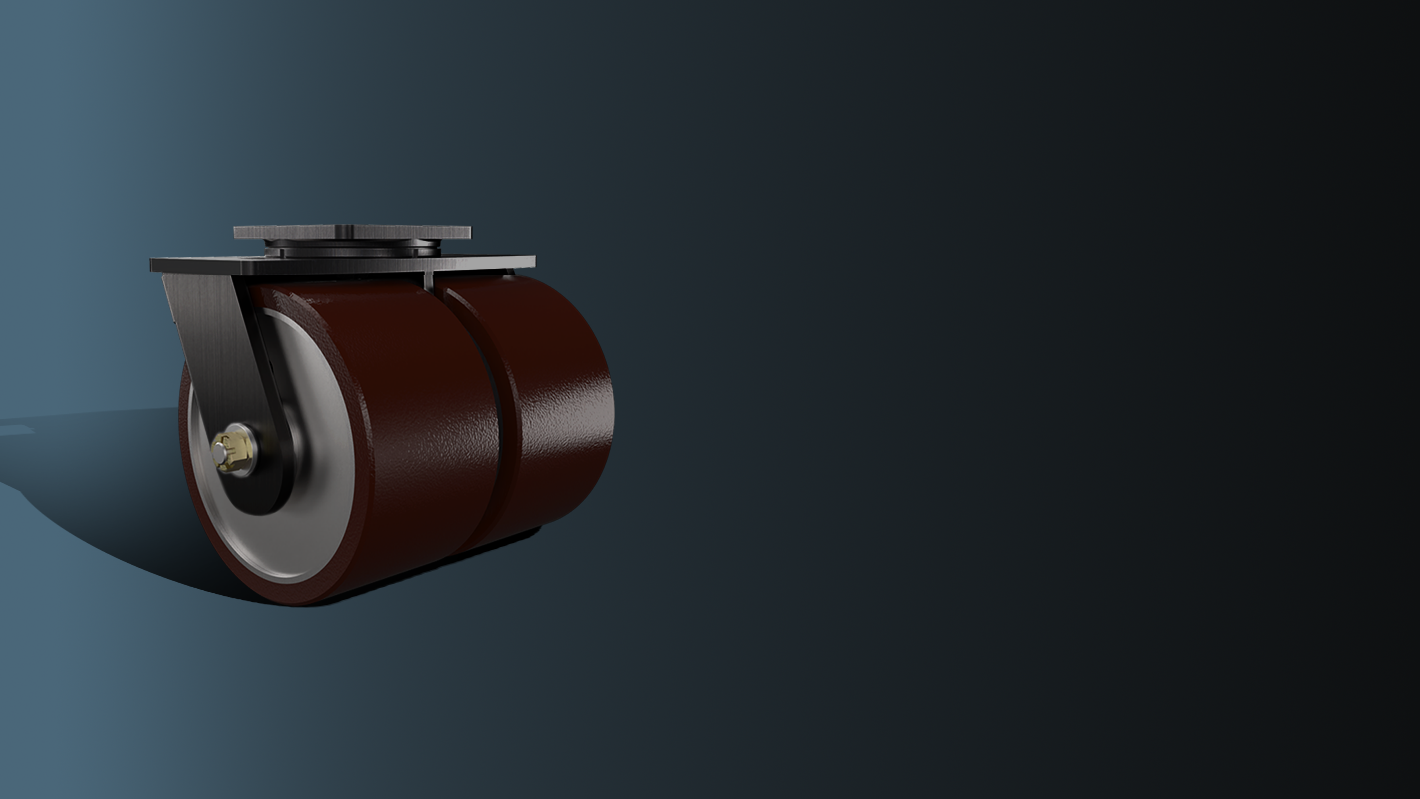

99-SERIES
Optimal for die handling, marine and automotive applications, the 99 Series also meets the needs for aerospace and aircraft ground support equipment.
FEATURES

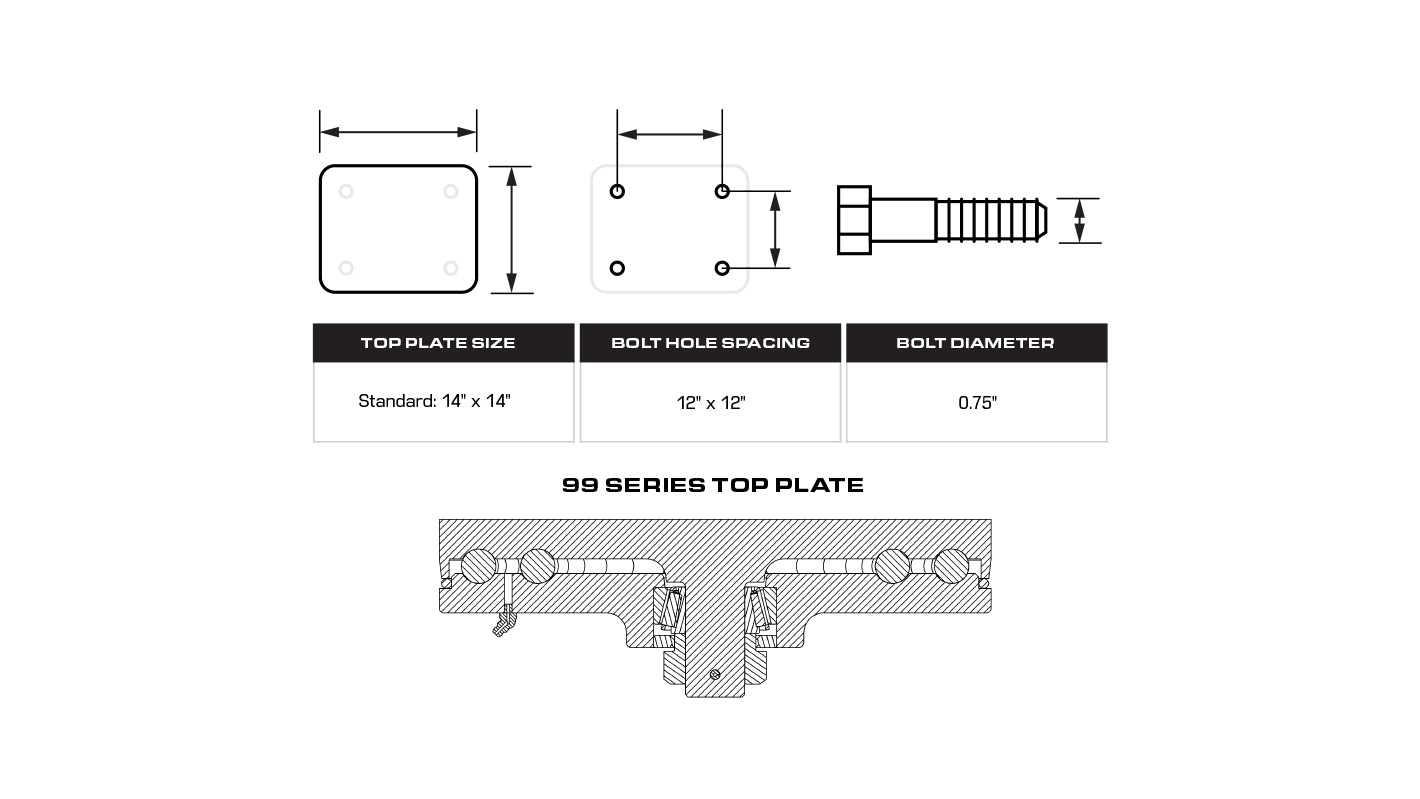

Swivel Section: The yoke and top plate for this massive swivel section are manufactured by a drop-forged process from C-1045 steel. The swivel section features precision-machined dual 9” and 12” diameter raceways.
Legs: 3/4” legs are continuously welded both inside and outside for the greatest strength.
Kingpin: 1-1/2” diameter kingpin integrally forged into top plate features a slotted adjusting nut and heavy-duty 1-1/2” sealed tapered thrust bearing.
Axle: 2” alloy steel
Lubrication: Pre-lubricated before shipping.
Wheels: Available in single and dual-wheel configurations. Single wheel diameters range from 12” to 28”. Dual wheel diameters range from 10” to 22” as standard.

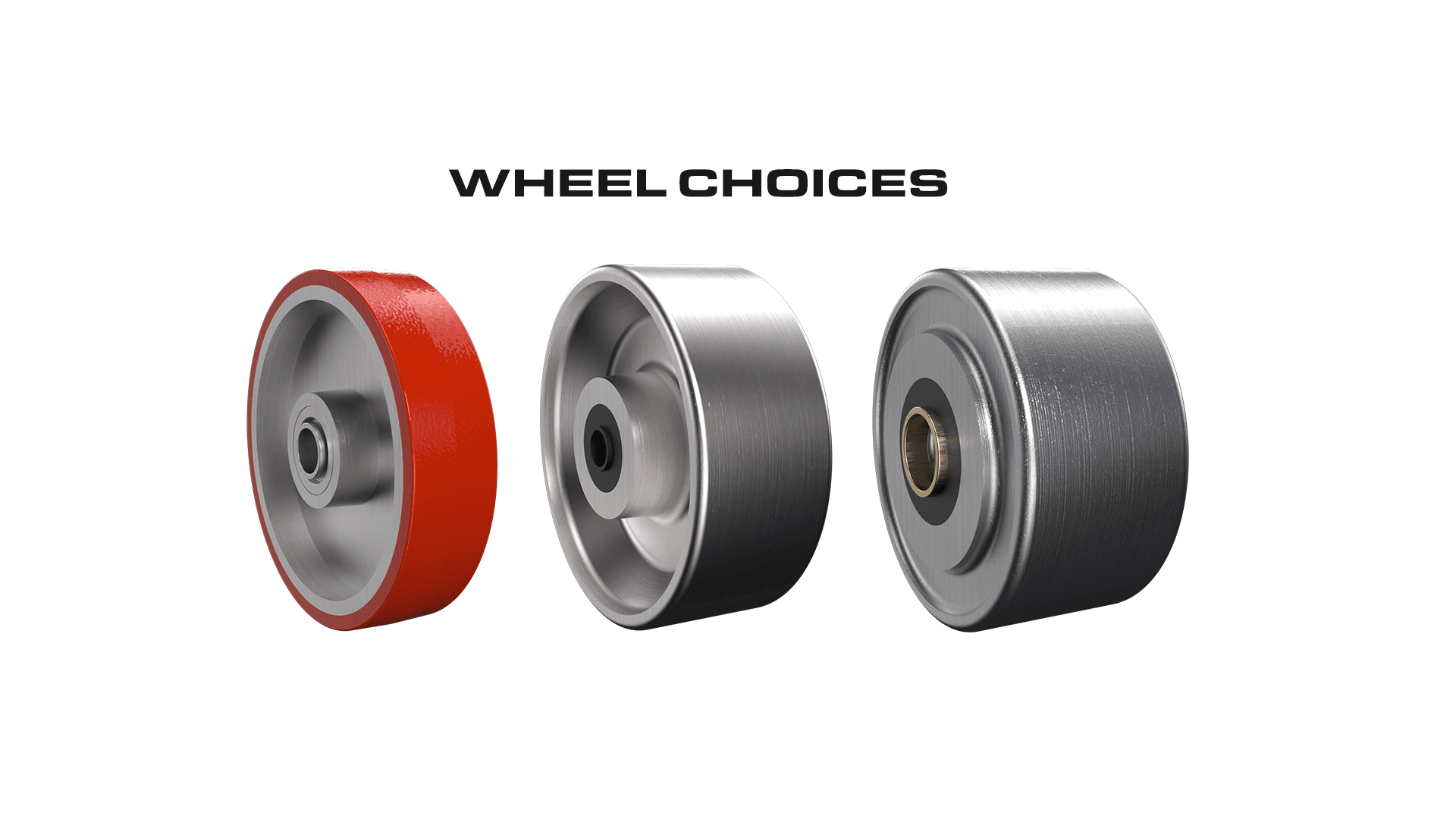

Wheel Choices: Polyurethane ▪ Ductile Iron ▪ Forged Steel
Finish: Black Powder Coat.
OPTIONS
BRAKES
Poly Lock
Face Contact
SWIVEL LOCKS
Vertical Mounted
Heavy Duty
SEALED WHEELS
TOE GUARD
NOT SURE WHICH CASTER IS RIGHT FOR YOUR APPLICATION?
