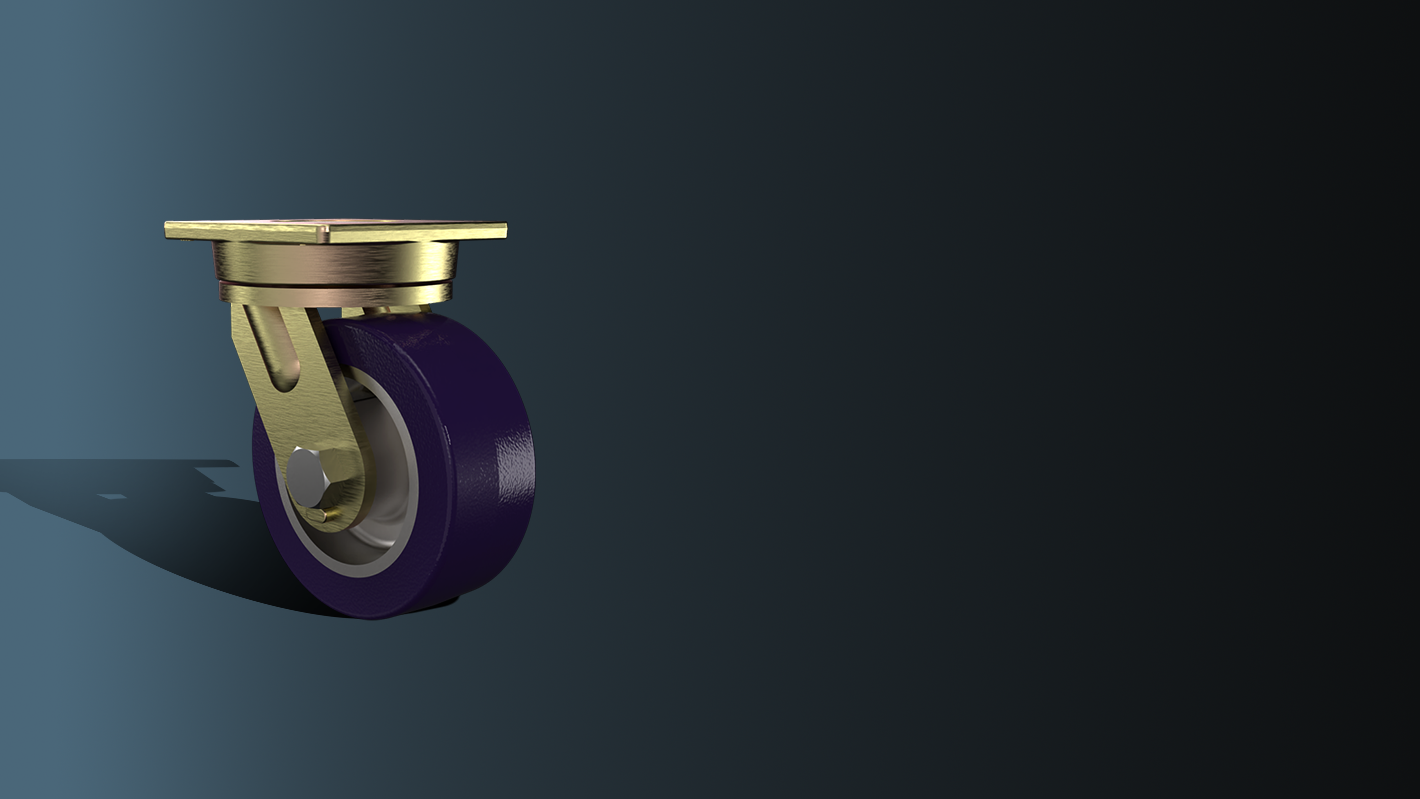

97-SERIES
Suitable for continuous use, power drawn applications, Automated Guided Vehicles (AGV’s), aircraft wing and spar tooling, material carts, chassis rack carts, and aircraft maintenance stands, aero engine stands, large boat dollies.
FEATURES

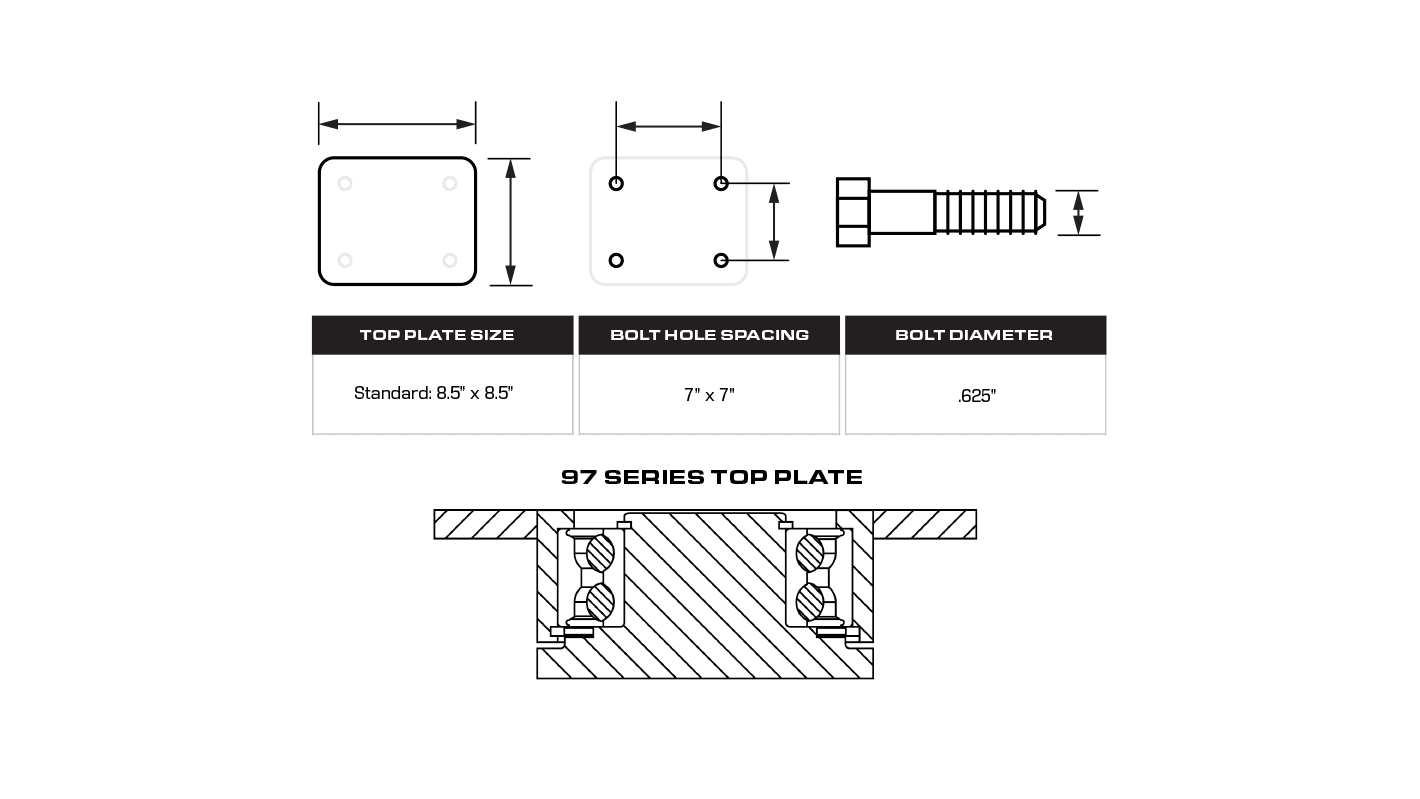

Swivel Section: Sealed precision ball bearing with hardened raceways and neoprene seals.
Legs: 1/2” x 4” steel, formed and continuously welded on the inside and outside to the yoke base.
Kingpin: Kingpinless style design.
Axle: 1-1/4”, Grade 5.
Lubrication: Sealed ball bearings are lubricated and require zero maintenance.
Wheels: 6” to 20” diameter wheels, 3” to 5” widths.

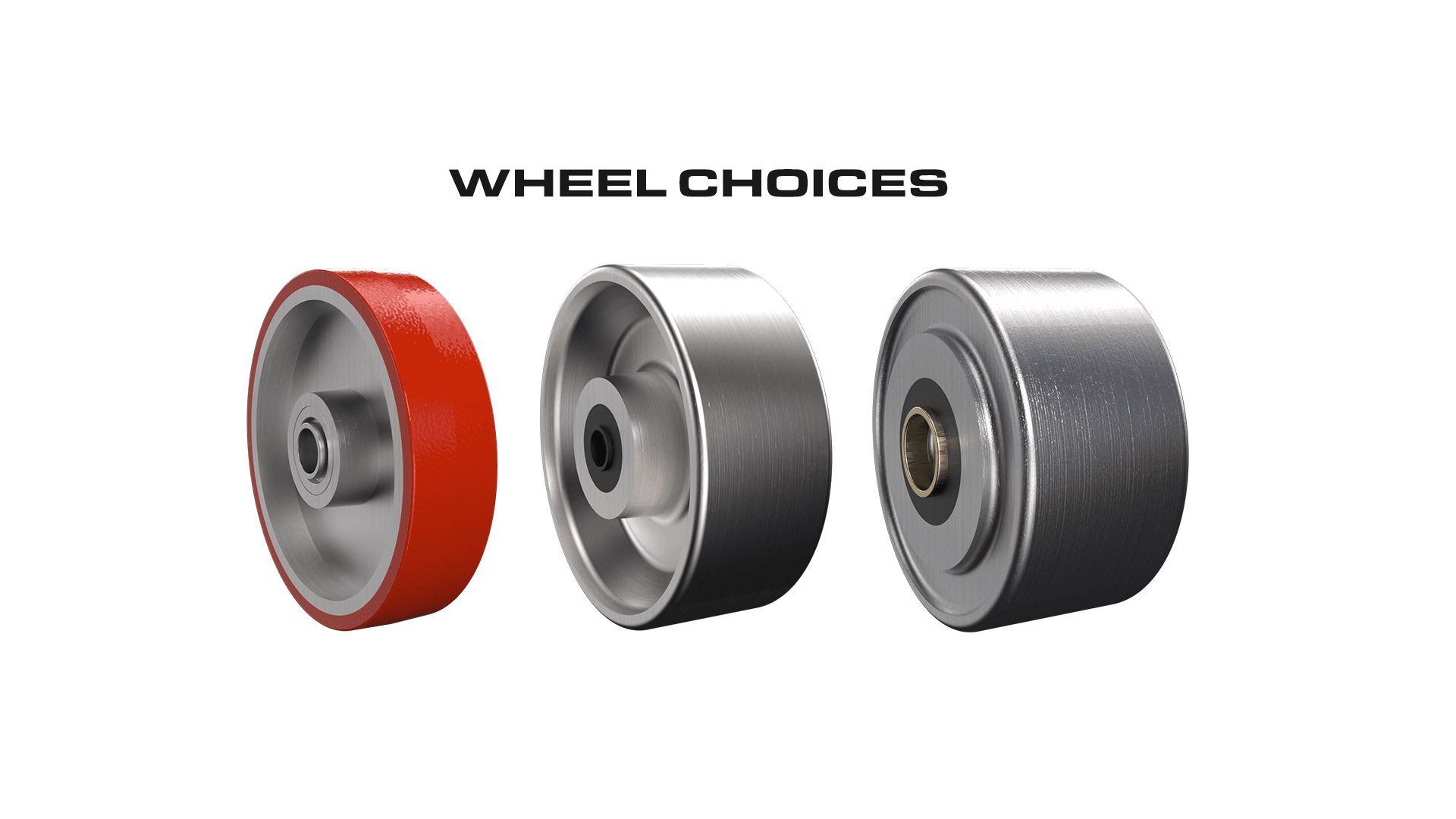

Wheel Choices: Polyurethane ▪ Ductile Iron ▪ Forged Steel
Finish: Gold Powder Coat.
OPTIONS
BRAKES
Poly Lock
Wrap Around
Face Contact
SWIVEL LOCKS
Factory Installed:
Heavy Duty
Heavy Duty Demountable
Foot Actuated
SEALED SWIVEL SECTION
SEALED WHEELS
TOE GUARD
