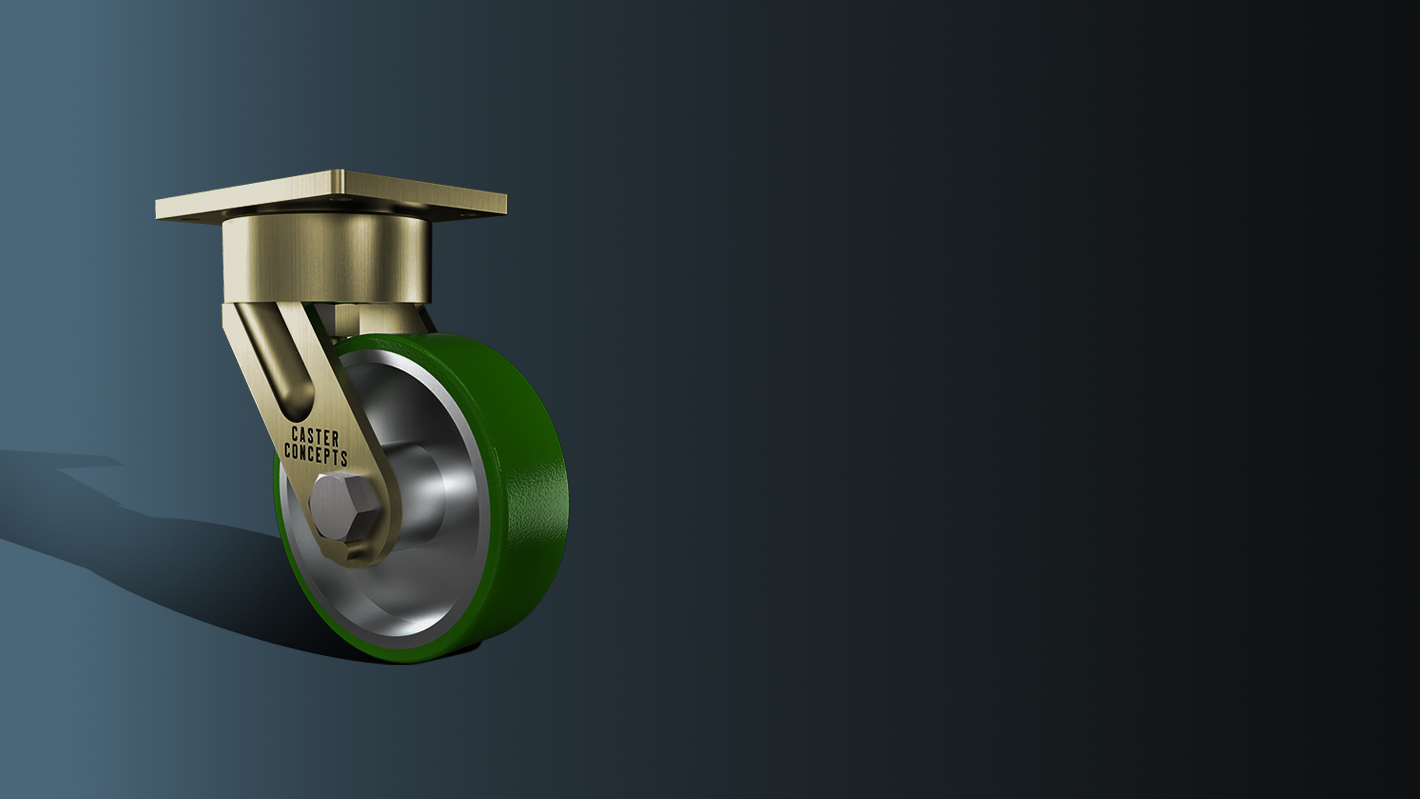

87-SERIES
Suitable for power drawn applications, Automated Guided Vehicles (AGV’s), aircraft wing and spar tooling, material carts, chassis rack carts, and aircraft maintenance stands.
FEATURES
Swivel Section: Sealed precision ball bearing with hardened raceways and neoprene seals.
Legs: 3/8” x 3” steel, formed and continuously welded on the inside and outside to the yoke base.
Kingpin: 1” Alloy Steel Kingpin.
Axle: 1” Diameter Axle.
Lubrication: Sealed ball bearing is lubricated and requires zero maintenance.
Wheels: 6” to 12” diameter wheels.

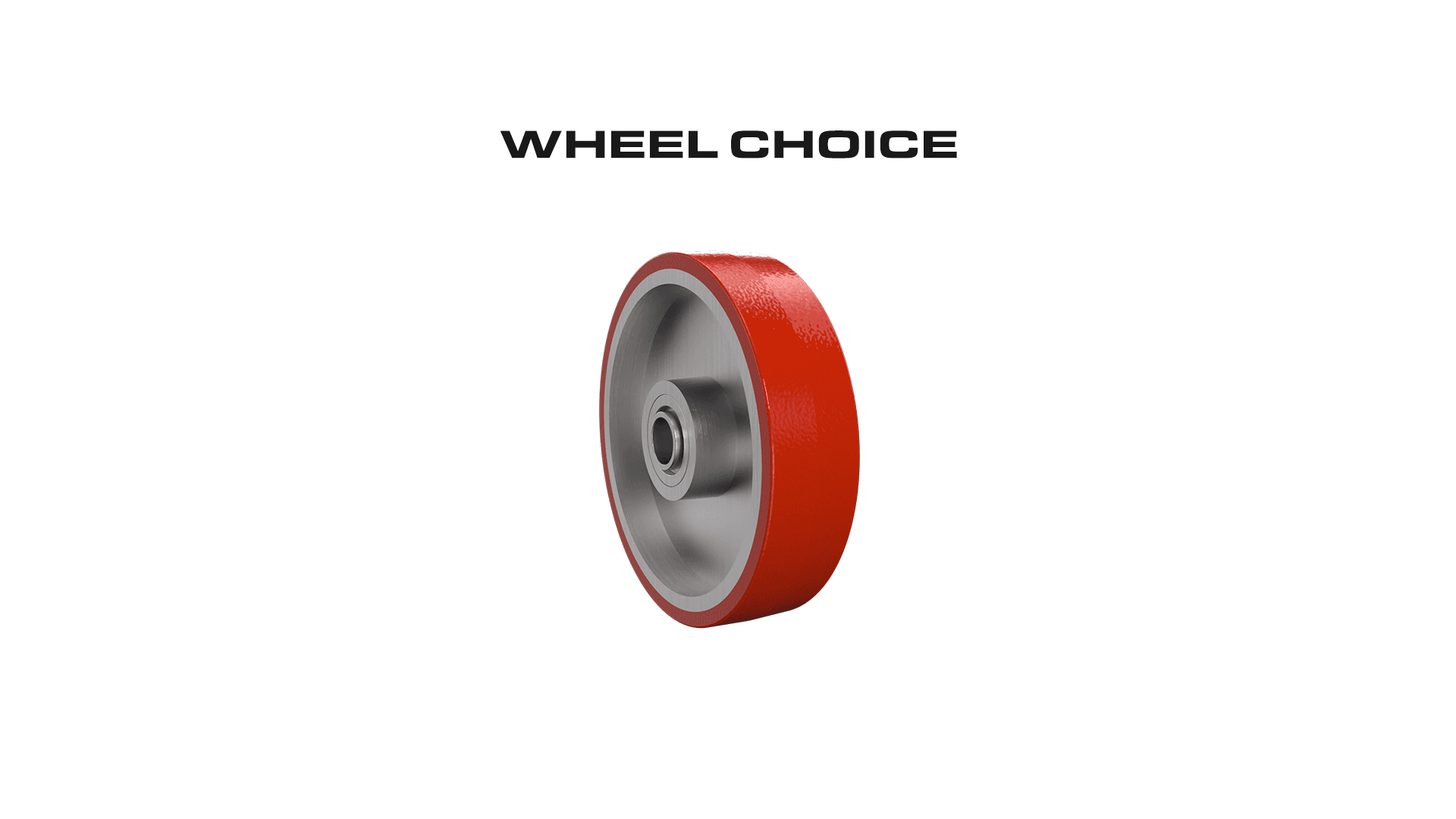

Wheel Choices: Tear Resistant and High Performance Polyurethane
Finish: Gold Powder Coat.
OPTIONS
BRAKES
Poly Lock
Face Contact
SWIVEL LOCKS
Factory Installed
Heavy Duty Demountable
Foot Actuated
TOE GUARD
NOT SURE WHICH CASTER IS RIGHT FOR YOUR APPLICATION?
