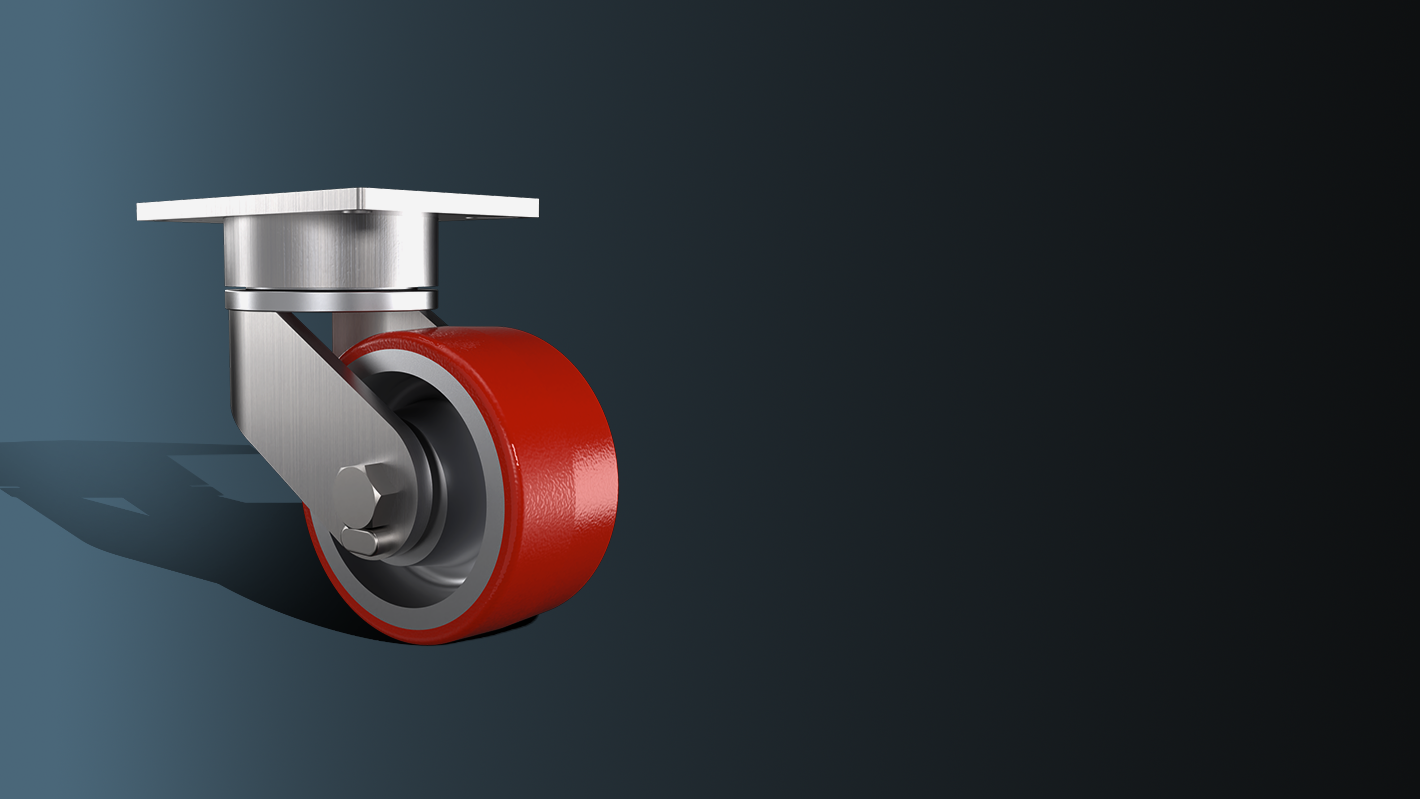

77-SERIES
Excellent for production racks (power transported, manually handled and mobile fixtures), parts bins, conveyor system, and other applications where maintenance-free casters and ergonomics are concerns.
FEATURES
Swivel Section: Sealed dual row ball bearings.
Legs: 3/8 inch x 2.75 inch laser cut from mild steel, CNC formed and continuously welded on the inside and outside of the yoke base.
Kingpin: Kingpinless style design
Axle: 3/4 inch diameter, zinc plated, fine threads.
Lubrication: Sealed ball bearing is lubricated and requires zero maintenance.
Wheel Diameter: 6” to 12” diameter wheels are available with sealed precision ball bearings.

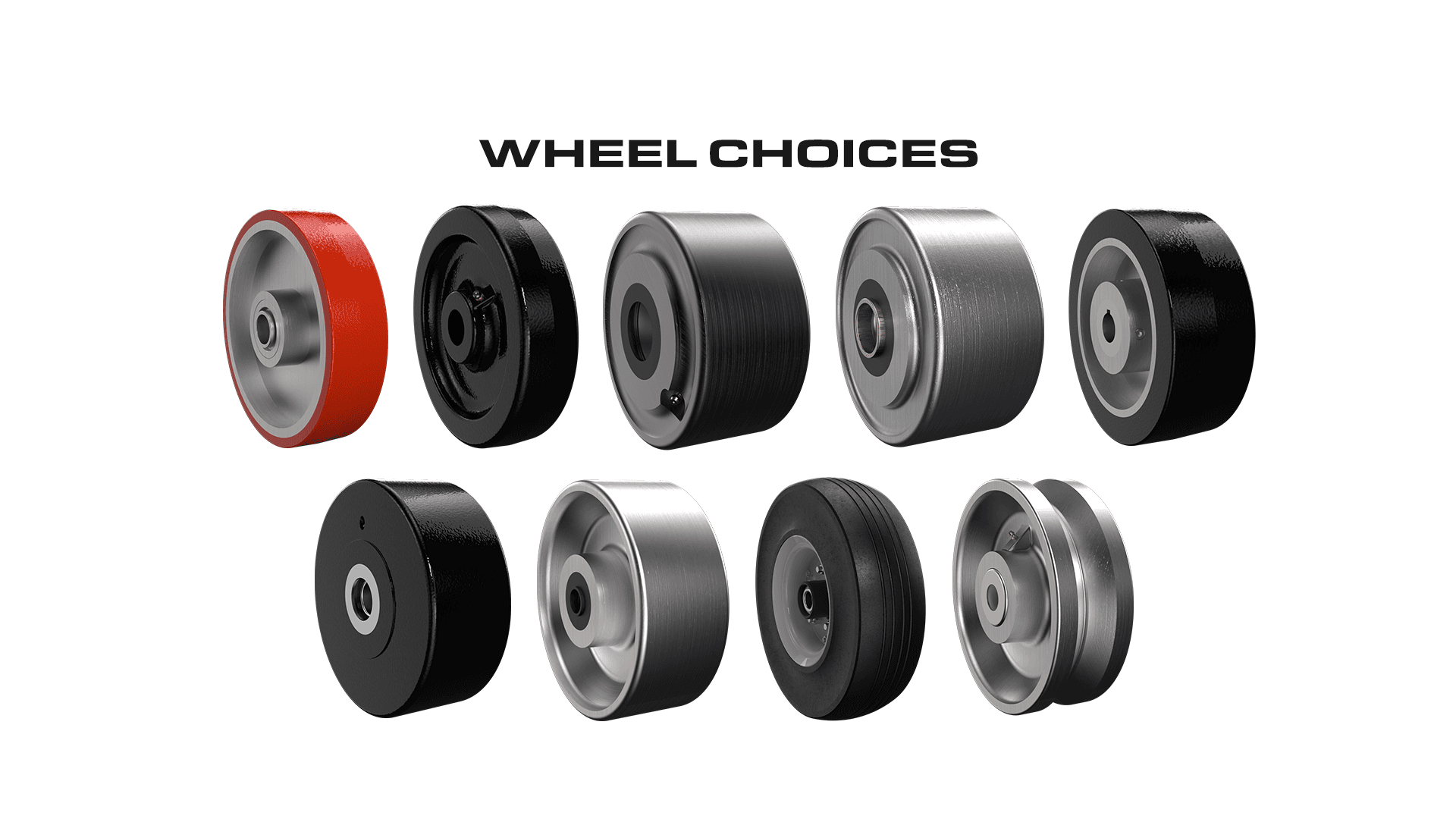

Wheel Choices: Ergo Tread, Tear Resistant and High Performance Polyurethane
Finish: Clear zinc plating.
OPTIONS
BRAKES
Poly Lock
Face Contact
SWIVEL LOCKS
Factory Installed
Demountable
TOE GUARD
NOT SURE WHICH CASTER IS RIGHT FOR YOUR APPLICATION?
“PROUDLY MADE IN THE USA”
Means more than where we build, it’s how we build.
It reflects our American spirit of innovation,
craftsmanship, and toughness. United by purpose.
Driven by possibility. Powered by our people.
