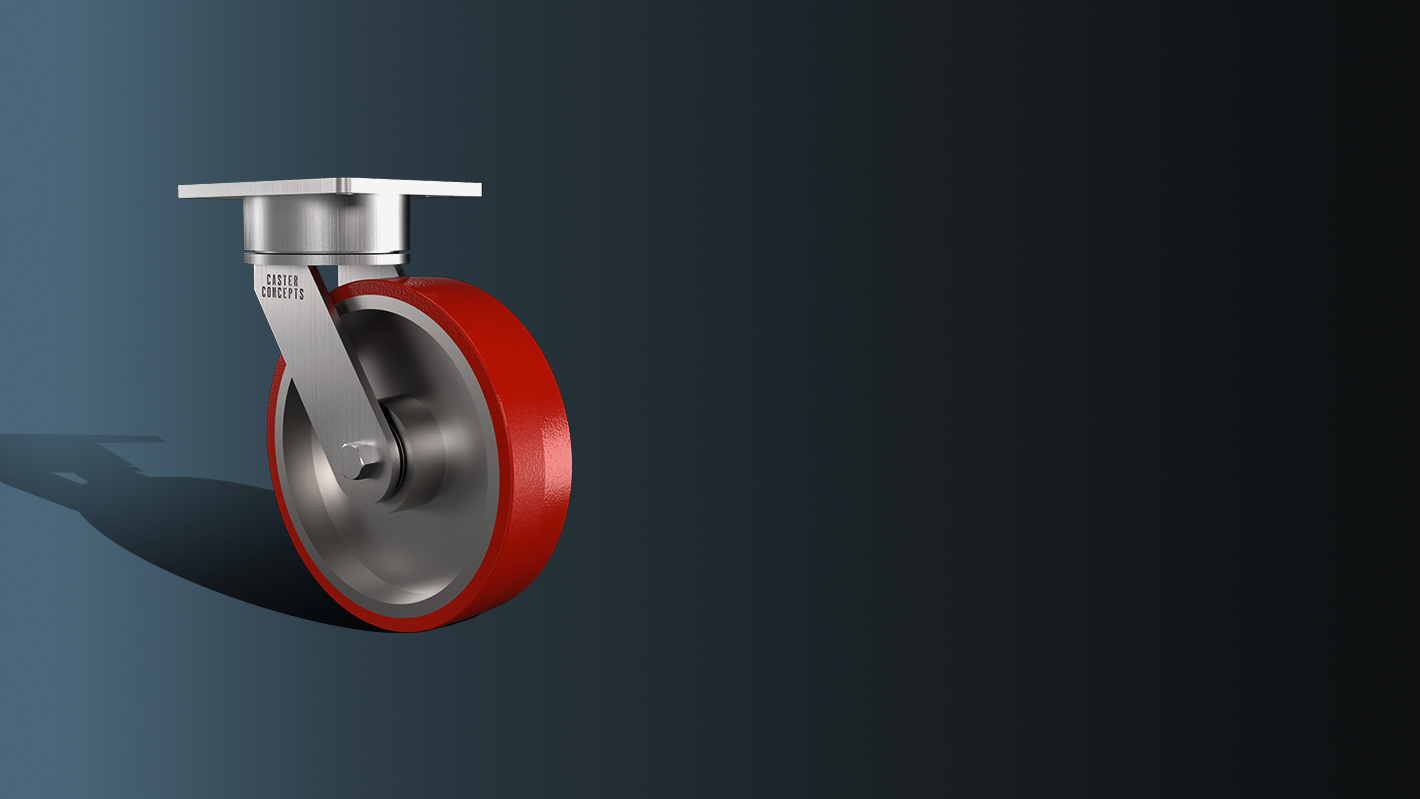

57-SERIES
Excellent for production racks and fixtures, parts bins, conveyor systems, and other applications where maintenance-free casters and ergonomics are concerns.
FEATURES
Available in Rigid or Swivel: The swivel section features sealed precision ball bearings with hardened raceways and neoprene seals.
Legs: 1/4” x 2” steel and continuously welded on the inside and outside of the yoke base.
Kingpin: Kingpinless style design.
Axle: 1/2” diameter.
Lubrication: Sealed ball bearing is lubricated and requires zero maintenance.
Wheels: 6” to 10” diameter wheels are available with sealed precision ball bearings.

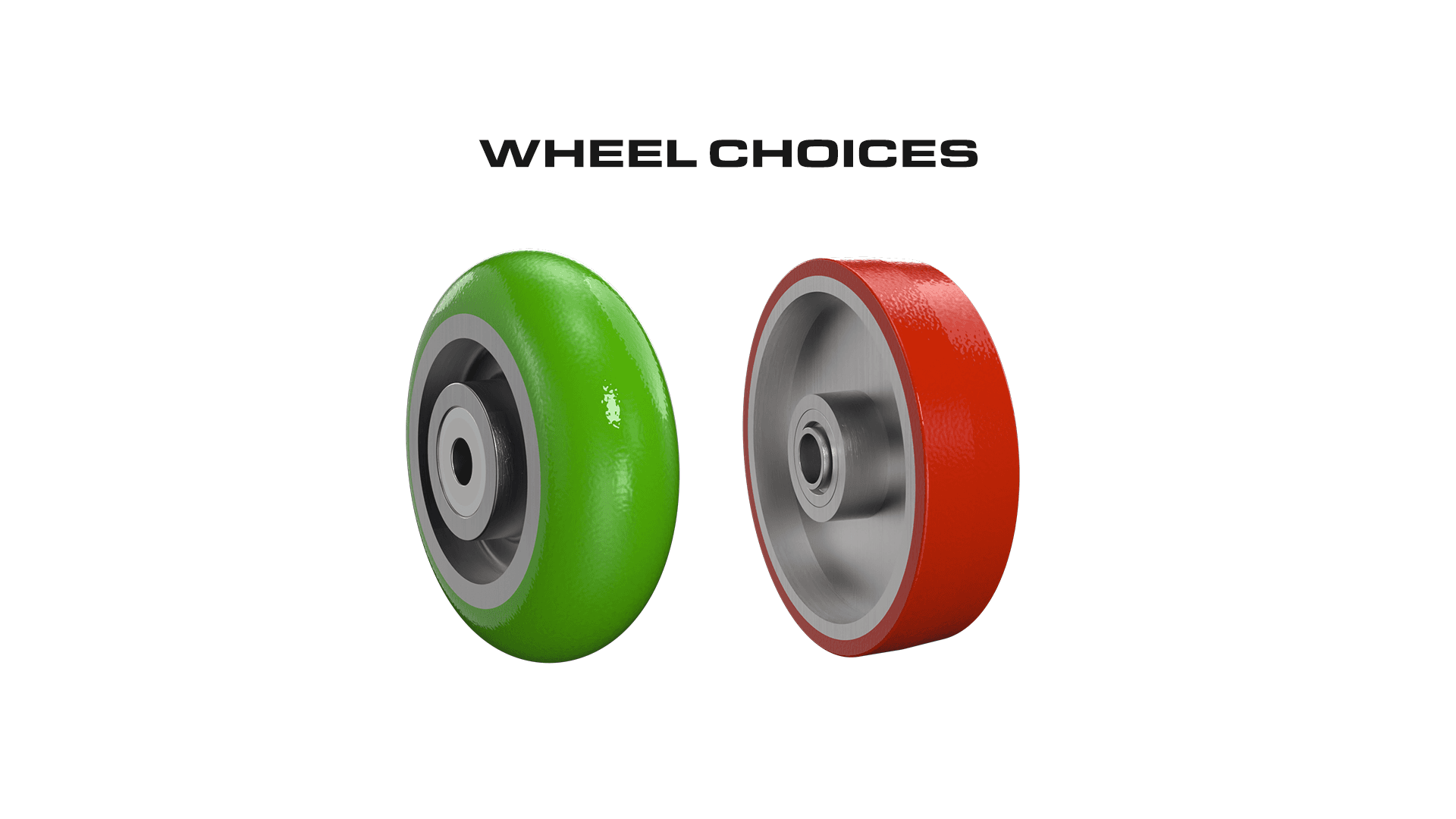

Wheel Options: Wheel Options: Polyurethane: (85A ErgoTread ▪ 95A Standard ▪ T/R 85A Tear Resistant)
Finish: Clear zinc plating.
OPTIONS
BRAKES
Cam
Poly Lock
Face Contact
SWIVEL LOCKS
Factory Installed
Demountable
Foot Actuated
TOE GUARD
