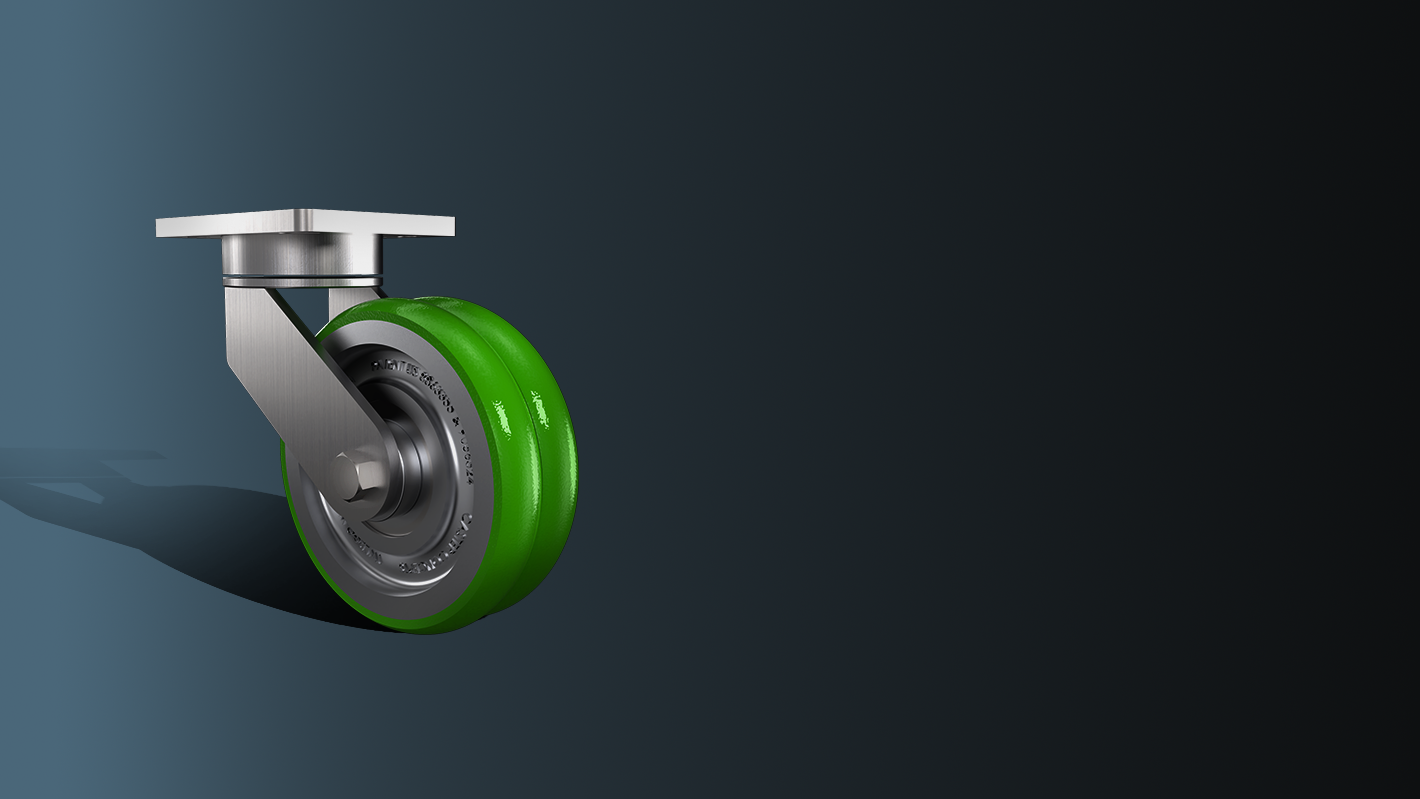

55-SERIES
Excellent for production racks and fixtures, parts bins, conveyor systems, and other applications where maintenance-free casters and ergonomics are concerns.
FEATURES
Swivel Section: Sealed precision ball bearing with hardened raceways and neoprene seals.
Legs: 1/4” x 2” steel and continuously welded on the inside and outside of the yoke base.
Kingpin: Kingpinless style design.
Axle: 1/2” diameter.
Lubrication: Sealed ball bearing is lubricated and requires zero maintenance.

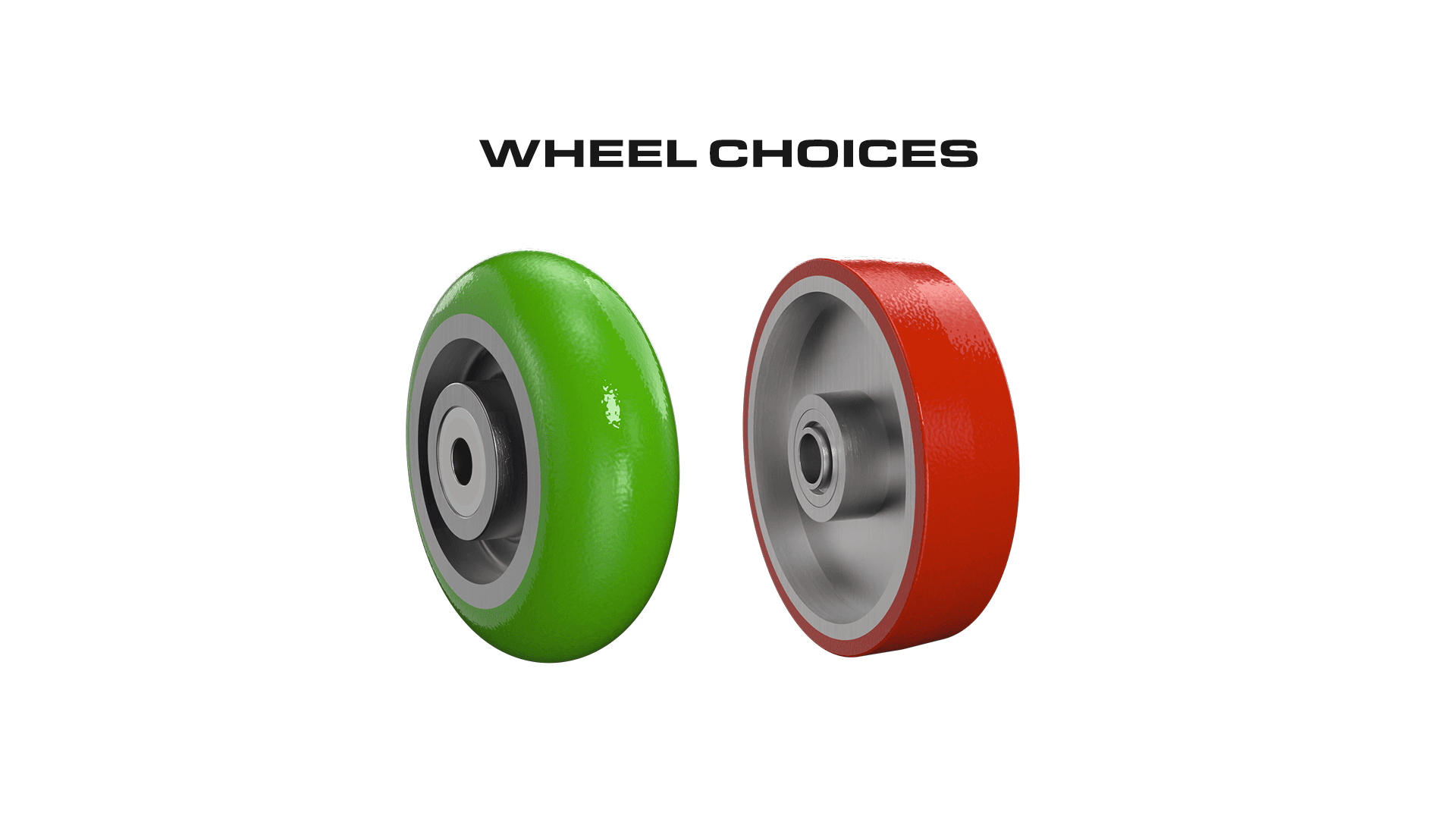

Wheels: 4” to 8” diameter wheels are available with sealed precision ball bearings.
Finish: Clear zinc plating.
OPTIONS
BRAKES
Cam
Poly Lock
Face Contact
SWIVEL LOCKS
Factory Installed
Demountable
Foot Actuated
TOE GUARD
NOT SURE WHICH CASTER IS RIGHT FOR YOUR APPLICATION?
