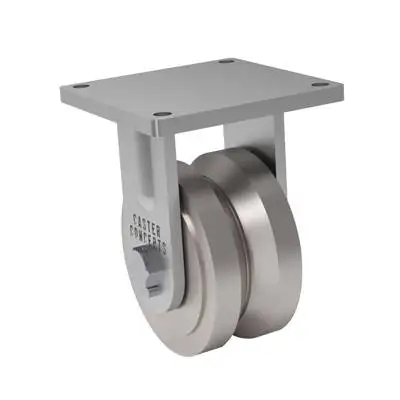

8×4 V-Groove Forged Steel Rigid Caster

SKU: 90-08409-25-2
  • Load rating of 8000 lbs.
  • Overall height of 11 inches
  • Cast Iron Wheel - Durable and strong wheel material with high load-bearing capacity, suitable for heavy-duty applications. Resistant to wear and abrasion.

$507.00$975.00 Caster components that fall outside of a standard solution affects costs, as well as a variety of other factors explained here. Listed pricing doesn’t include optional equipment such as toe guards, or swivel locks, which can increase cost significantly. Quantity based buying can also decrease overall costs but is still subject to current market conditions.
Price range does not include options or accessories*
Engineered Casters Produced and Shipped in 4 Days

Categories: , , ,


Specifications

Product Type: Caster
Series: 90
Capacity: 8,000 lbs.
Caster Material: Steel
Wheel Material: Forged Steel
Wheel Configuration: Single Wheel
Wheel Type: V-Groove
Wheel Width: 4"
Wheel Diameter: 8"
Caster Style: Rigid Caster
Overall Height: 11"
*Temperature Range (Continuous): -40 to 320°F
*Temperature Range (Intermittent): -40 to 320°F
Top Plate Size: 8.5 x 8.5
Bolt Hole Pattern: 7 x 7
Bolt Size: 0.625"
Bearing Type: Precision Tapered Bearing
SKU: 90-08409-25-2
Caster Weight: 73 lbs.
*High temperature grease must be used over 200°F

Product Description

This 8-inch by 4-inch 90 series caster, is a durable and high-performance solution designed to excel in demanding applications. Through rigorous heat treatment, all components are fortified for enhanced durability. With its impressive load capacity and excellent value, the 90 Series fixed caster is a trusted choice for applications that demand durability, precision, and cost-effectiveness, delivering exceptional performance and long-lasting reliability.

Combined with Forged Steel wheels, these casters become a powerhouse solution for heavy-duty industrial applications. These wheels are hot forged from high carbon steel billets, enhancing their grain structure, ductility, and tensile strength (64,000 psi). With precision machining, they meet tight tolerances, ensuring flat surfaces with rounded edges. Offering the greatest load capacity, impact strength, and rollability among caster wheels. With the proper wheels and bearings, these wheels are capable of withstanding temperatures up to 800 degrees. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 8000 lbs.

Description

This 8-inch by 4-inch 90 series caster, is a durable and high-performance solution designed to excel in demanding applications. Through rigorous heat treatment, all components are fortified for enhanced durability. With its impressive load capacity and excellent value, the 90 Series fixed caster is a trusted choice for applications that demand durability, precision, and cost-effectiveness, delivering exceptional performance and long-lasting reliability.

Combined with Forged Steel wheels, these casters become a powerhouse solution for heavy-duty industrial applications. These wheels are hot forged from high carbon steel billets, enhancing their grain structure, ductility, and tensile strength (64,000 psi). With precision machining, they meet tight tolerances, ensuring flat surfaces with rounded edges. Offering the greatest load capacity, impact strength, and rollability among caster wheels. With the proper wheels and bearings, these wheels are capable of withstanding temperatures up to 800 degrees. Featuring our precision tapered bearings, the wheels are capable of absorbing excessive side thrust loading and can be used where high speed operation is essential, all with a load rating of 8000 lbs.

Additional information

Weight 73 lbs
